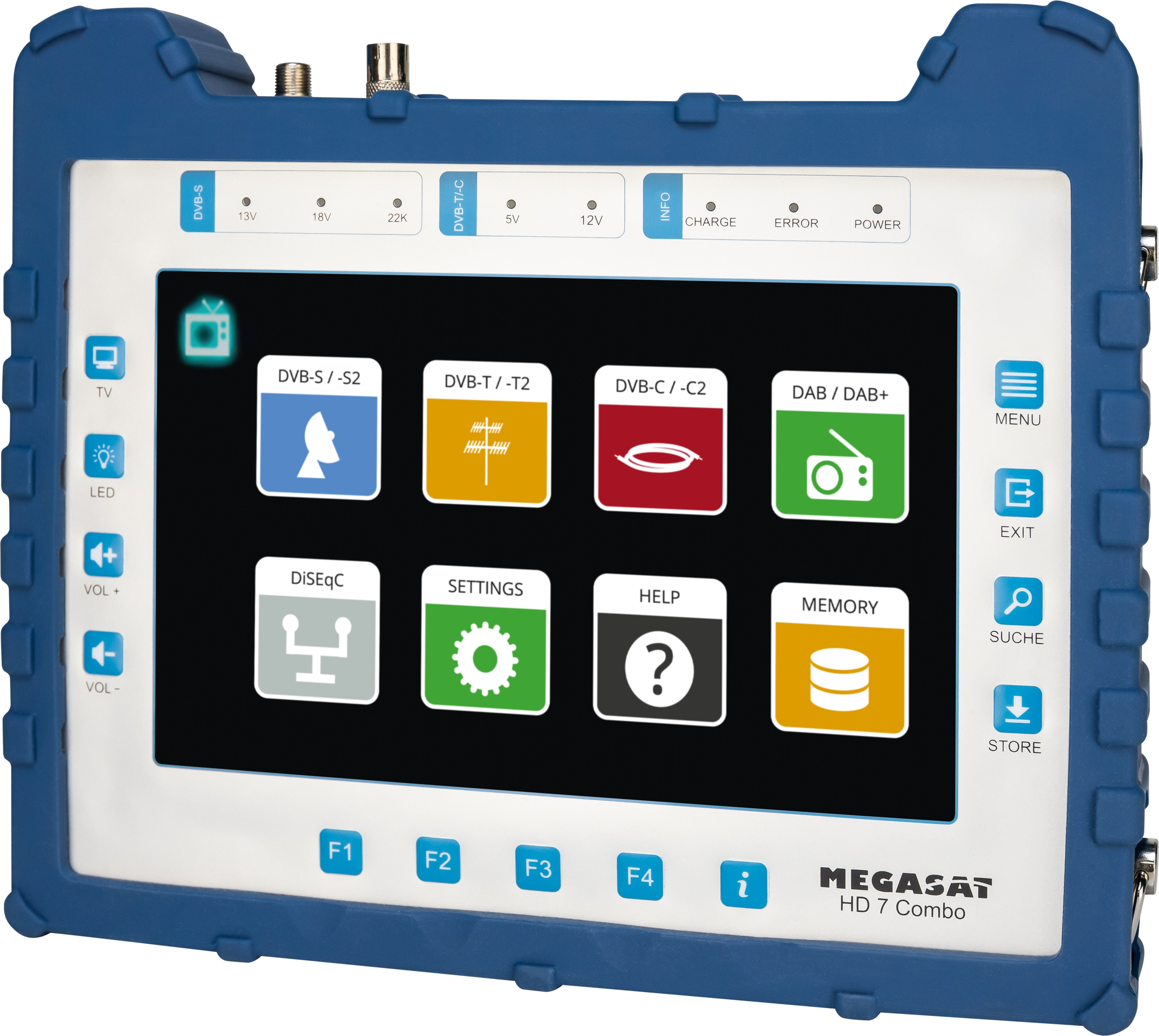

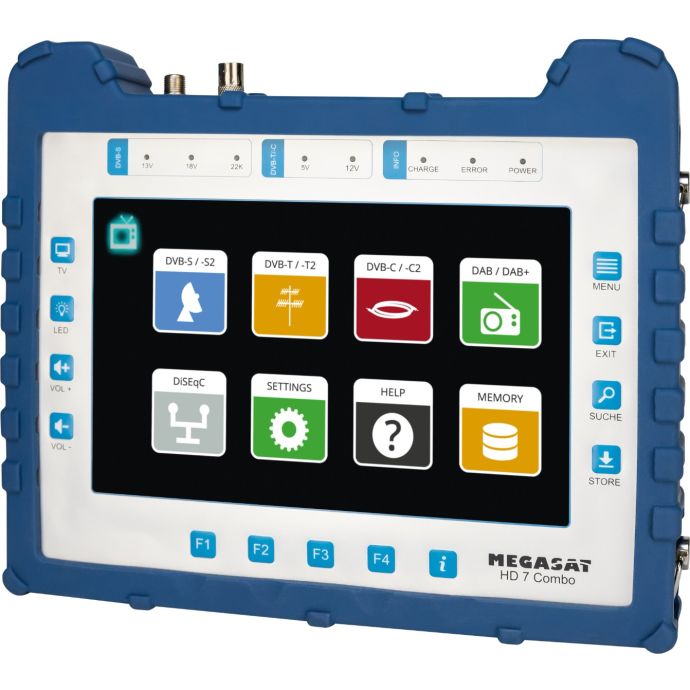

Megasat HD 7 Field Meter

HD Combo series meter for satellite, cable, terrestrial and DAB+ reception. It has an 8.9” color screen. With automatic satellite detection (NIT). Integrated receiver with live television playback.

The HD7 offers great precision when making measurements for satellite, cable/terrestrial television. In the case of DAB/DAB+ measurement, digital radio measurements can also be carried out.

Its casing is made of aluminum, providing quality and robustness. On the back it has an LED light so it can be used even in low light conditions. It has an 8.9” color touch screen. It comes with a pre-installed channel list.

With its spectrum analyzer we detect and analyze possible errors in reception. With constellation analysis, which provides us with a more detailed view of satellite reception. Displays measurement values such as dBm, CNR, BER on the screen.

The megasta HD7 COMBO incorporates compass and angle calculation to determine the vertical and horizontal angle of the antenna. With the NIT (automatic satellite recognition) the meter will inform us which satellite it is on, making the job much faster.

Its battery lasts up to 4 hours of operation. Includes carrying bag.



-
+

Technical Specifications of the Megasat HD 7 Field Meter

Technical data

General

8.9-inch (22.6 cm) color touchscreen
SD/HD/FHD video output: 480i/p,576i/p,720p,1080i/p,4Kx2K
Measurement of all reception types
DVB-S/S2/C/C2/T/T2 H.264/H.265/DAB/DAB+
Live TV playback
Visual and audible signal level indication
Spectrum and constellation
DiSEqC Switching Command Control
Integrated speaker for TV playback.
LED light on the rear for poor visibility.
Stable and high-quality aluminum housing.
USB connection for firmware updates and
storage of transmitter list and measurement data.
Screw terminals for easy changing of F plugs
Power switch and auto standby
reset button
Digital user manual on the device.
Power Supply: AC 100-240V / DC 12V, 2A
Lithium-ion battery (7.4 V / 5000 mA/h)

DVB-S/-S2

Frequency range: 950 - 2150 MHz
Input level range: 35 ~ 100 dBμV
LNB voltage: 13/18 V, max. 300mA
Measurement of LNB current consumption in mA
LNB short circuit indication and protection
Indicators: CNR/LKM/CBER/LBER/PWR Strength/Quality dBμV/dBm.
DiSEqC 1.0 / 1.1 / 1.2 / USALS / Auto DiSEqC
Unicable I and II (EN 50494 / EN 50607)
TV Search Mode: Auto, Blind Search, Manual
Transponder control (reception level identification)
Calculation of the angle of rotation and inclination incl. Compass
NIT control and satellite evaluation

DVB-T/-T2/-C/-C2

Frequency range: 42 - 1002 MHz
DVB-T screens: PWR/CBER/LBER/MER/TS Bitrate/TSID/ONID
DVB-C screens: PWR/CNR/LBER/CBER/ONID/TSID/TS Bitrate.
Level range: 30 ~ 100 dBμV
Range display/tilt display
Automatic and manual program search.

DAB/DAB+

DAB/DAB+ signal measurement and testing
Play DAB/DAB+ programs
Measured values for dBμV level, SNR, CNR, ACQ, EID

DiSEqC monitor

Measurement and control of DiSEqC switching commands.

More Information
EAN 4046173108392
Hight 0.150
Length 0.330
Width 0.260
System Field Meters
SERIE Economical
Color Gray
DVB-C Yes
DVB-S Yes
DVB-T Yes
Fibra No
CCTV No
Product Brand Megasat
