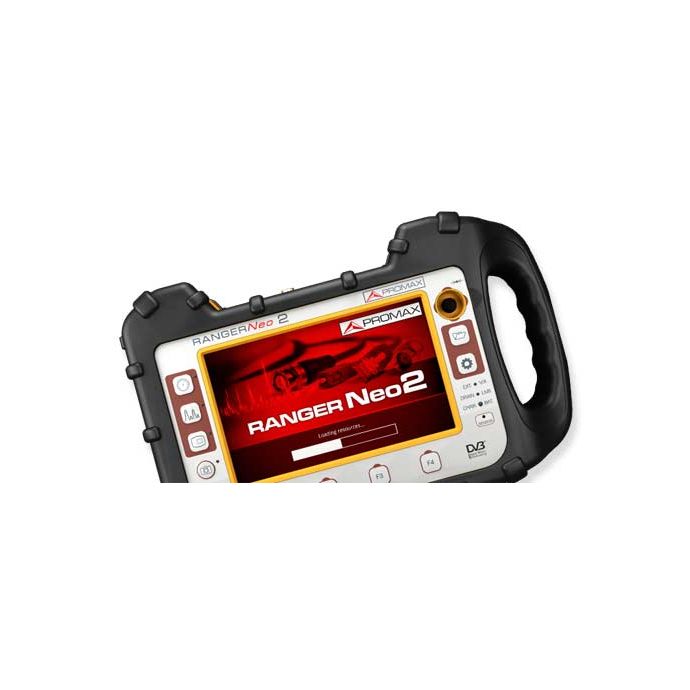

HD Ranger NEO 2 Field Meter

SKU
PRORANGERNEO2
Brands: Promax
€7,314.45 Tax included
Free shipping
(Iberian Peninsula)
Availability: On request
1 to 7 days

Field meter with touch screen

The HD Ranger Neo 2 meter features the novelty of a 7 "touch screen with excellent brightness and superior image clarity that can also be used with working gloves. The hybrid operation of the Ranger Neo 2 allows the meter to function fully with both the touch panel and the conventional keyboard.

The Ranger Neo 2 incorporates all the functions of the Ranger Neo + plus IPTV input, Common Interface (CAM) for encrypted channels, HDMI interface and TS-ASI I / O.

Measures for fiber optic and 3 GHz bandwidth can also be optionally added.

-
+

The Ranger Neo 2 meter is a field meter that can be used in all possible technological scenarios.

What technical characteristics does the Neo 2 meter have?

SPECIFICATIONS RANGERNeo 2 ATSC
OPERATION MODES Hybrid operation: 7” touch screen or conventional buttons
DIGITAL STANDARDS - ATSC, TS
- DVB-C, QAM Annex B
- DVB-S, DVB-S2, DVB-S2 multistream, DSS, ACM/VCM
DOLBY DIGITAL PLUS Included
CONNECTIVITY - Universal RF input
- TS-ASI input and output
- IPTV input
- HDMI output
- Analog audio/video input and output
- Common Interface slot (CAM modules)
- 2x USB interface
FUNCTIONS - Spectrogram
- Constellation diagram for all DVB standards
- LTE filters
- Dynamic echoes analysis
- StealthID (instant signal identification)
- DVB-S2 multistream
- PLS (physical layer scrambling)
- Ultra fast spectrum analyser
  (90 ms sweep time) with peak hold
- FM RDS radio measurements
- Signal monitoring
- Field strength
- Task planner
- Screenshots and Datalogger for
  measurement reports
- Wideband LNB
- Wi-Fi 2.4 GHz
- LTE 1.8 GHz
- OTT
- TS Recording
- CC Analysis
- TS Analysis
- Web server
- PSIP
- IPTV Multicast
- Shoulder attenuation
- Service recording
- DVB-S2 multistream
OPTIONS - Optical fibre measurements
- WiFi 5 GHz & LTE 2.6 GHz
- DAB, DAB+
- GPS Coverage Analysis
- For rack assembly
OPTICAL FIBRE (optional) - Integrated optical-to-RF converter
- Integrated selective optical power meter
ASI-TS INPUT AND OUTPUT - Real-time transport stream analysis function
IPTV INPUT - Ethernet 100/1000 Mbps
- RJ45 connector
- UDP or RTP/UDP protocols
- MULTICAST / IGMP v2 transmission methods
- Payload: from 1 to 7 MPEG-2 packets
PC CONNECTION (via Ethernet interface) - NetUpdate 4 free software
- Free and automatic firmware updates
- Datalogger data download
- Channel tables customization
- Measurement reports

What's new with the HD Ranger Neo 2?

  • It has a 7 "touch screen with excellent brightness and superior image sharpness. Which can be worn with work gloves.
  • It allows operation with both the touch panel and the conventional keyboard.
  • Includes IPTV input, Common Interface (CAM) for encrypted channels, HDMI interface and TS-ASI I / O.
  • Measures for fiber optic and 3 GHz bandwidth can also be optionally added.
More Information
EAN 8400735200089
Hight 0.000
Length 0.000
Width 0.000
System Field Meters
SERIE Ranger
DVB-C Yes
DVB-S Yes
DVB-T Yes
Fibra Yes
CCTV No
Product Brand Promax
