Megasat HD 5 Meter Field Meter

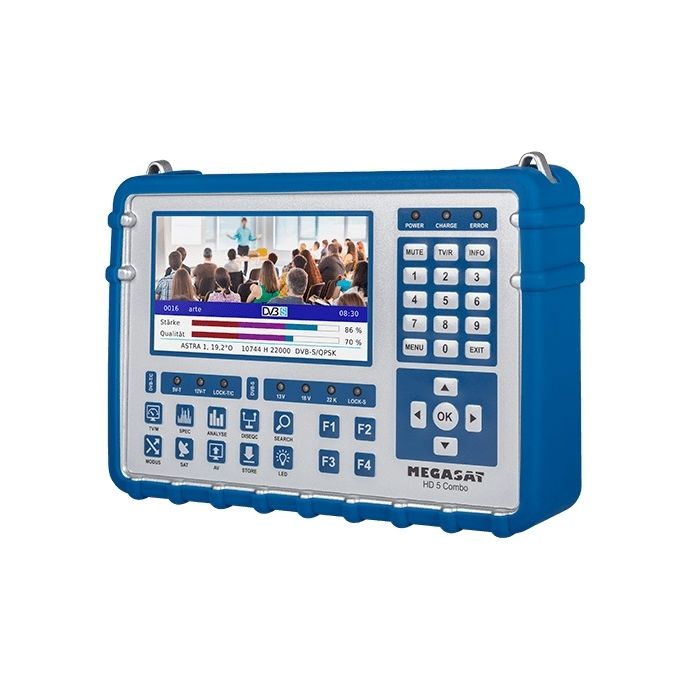

The HD 5 combo field meter has a large display for measuring the signal and playing live television images.

What technical features does the HD 5 Combo Field Meter have?

General characteristics

• 5 inch (12.7 cm) AMOLED color screen
• Measurement of all reception types (DVB-S / -S2 / -S2X / -C / -C2 / T / -T2 H.264 and H.265 / HEVC)
• Live TV playback
• Video decoding: MPEG4, MPEG4-AVC / H.264 and H.265 / HEVC, HIEG animals @ level 4.1, MGEP2 ISO / IEC 13818-2 MP @ HL / ML
• Audio decoding: MPEG1, MPEG2 ISO / IEC 13818-3 Layer I and II
• Integrated speakers
• Li-Ion battery (7.4 V / 5000 mA / h) with fast charge
• LED light on the back to calibrate the system in low light conditions
• High quality aluminum
• USB port for firmware updates and storage of measurement data, program list, ...
• Power supply: 100-240 V AC / DC 12 V, 2 A
• Antenna voltage: 5 V / 12 V (200 mA max.)

DVB-S / S2 / S2X

• DVB-S Frequency range: 950 - 2150 MHz
• DVB-S voltage LNB: 13/18 V, max. 300 mA
• DVB-S Power Supply LNB: Power Rating LNB (mA)
• DVB-S level range: 35 ~ 90 microvolts dB
• Input Resistance: 75 Ω
• HD Ultra Signal Measurement
• Unicable I and II (EN 50494 / EN 50607)
• DiSEqC 1.0 / 1.1 / 1.2 / USALS (Automatic Detection of DiSEqC 1.0)
• Automatic detection satellite (NIT)
• Calculation of the turn and the angle of inclination of the antenna
• Search mode: Manual, automatic blind search
• LNB short circuit protection with LED display
• Signal strength / quality, dBm, CNR, BER
• Spectrum and constellation analysis
• Identification cable in Quattro LNB (transponder control)

DVB-T / T2

• Frequency range 44 - to 870 MHz
• Level range: 30 ~ -100 dBĩV
• Signal strength / quality, BER, PER, CNR
• Spectrum and constellation analysis
• Automatic signal identification
• Code rate: DVB-T: 1/2, 2/3, 3/4, 5/6, 7/8
• Code rate: DVB-T2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
• DVB-T modulation: QPSK, 16 QAM, 64 QAM
• The DVB-T2 modulation: QPSK, 16 QAM, 64 QAM, 256 QAM
• DVB-T bandwidth: 6, 7 and 8 MHz
• Bandwidth of DVB-T2 1.7, 6, 7 and 8 MHz

DVB-C / C2

• Frequency range 44 - to 870 MHz
• Level range: 30 ~ -100 dBĩV
• Signal Strength / Quality, BER, PER, CNR, Symbol Rate
• Spectrum and constellation analysis
• Inclination of the screen
• DVB-C modulation: between 16 and 256QAM
• The DVB-C2 modulation: 16 QAM to 4096 QAM
• RF input level range: 30 ~ 100 microvolts dB

Connections

• 1x USB
• 1x DV output
• 1x audio / video input (3.5mm jack)
• 1x 12 volt output (for external devices)
• F 1x port (for DVB-S / S2 / S2X)
• 1x RF Port (for DVB-T / T2 and DVB-C / C2)

What does the HD 5 Combo Field Meter include?

• HD Combo 5 Satellite Meter
• belt
• Carrying case with strap
• Silicone sheath
• 230 volt mains charger
• 12 volt car charger
• 12 volt adapter cable
• Audio / video adapter
• F coaxial
• instructions for use
