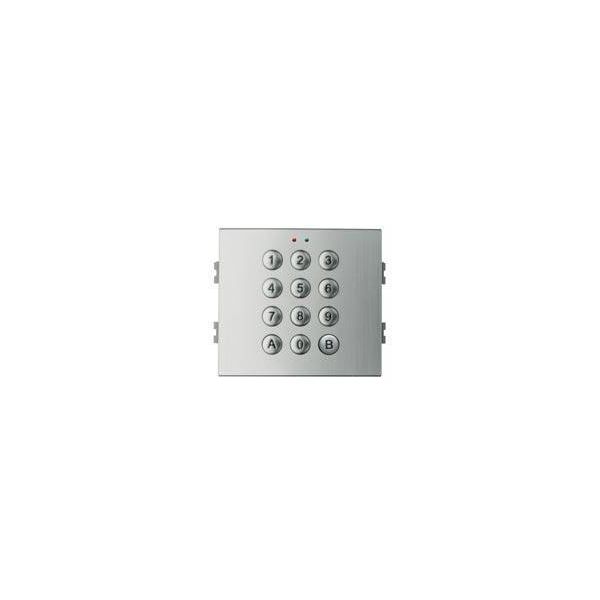

self Memokey Module. Ref. 7438 Fermax
Access Control Module to incorporate in door entry / video door.
Telephone type keypad that lets you open the door to enter a code of up to 6 digits preprogrammed.
New Cityline Panel.
Cityline is the line
Features:
Power supply: 12 Vac / Vdc
Up to 100 user codes
- length codes 4 6 digits.
- lock activation by relay 2 A (NA, NC). Programmable 1-99 sec or bistable.
- Exit button input.
- free access button input (trades).
- Open Collector auxiliary output (150 mA max) to indicate sabotage attempt or
door open / forced.
- Confirmation by sound keystroke and acceptance or rejection of the code .. introduced
- Programming from the keypad by master code
- Supply 12 Vac / 12 Vdc
- Consumption: 6 rest mA, 60 mA active.
- protection IPK 536
| EAN | 8424299074382 |
|---|---|
| Hight | 0.130 |
| Length | 0.100 |
| Width | 0.060 |
| ACCESOS - SISTEMA | Push Buttons |
| ACCESOS - SERIE | SKYLINE |
| Color | Silver |
| Installation | Indoor |
| Identification | Password |
| Product Brand | Fermax |
