Mercusys N 300Mbps WiFi Router In stock
Delivery: 24/48 Hours

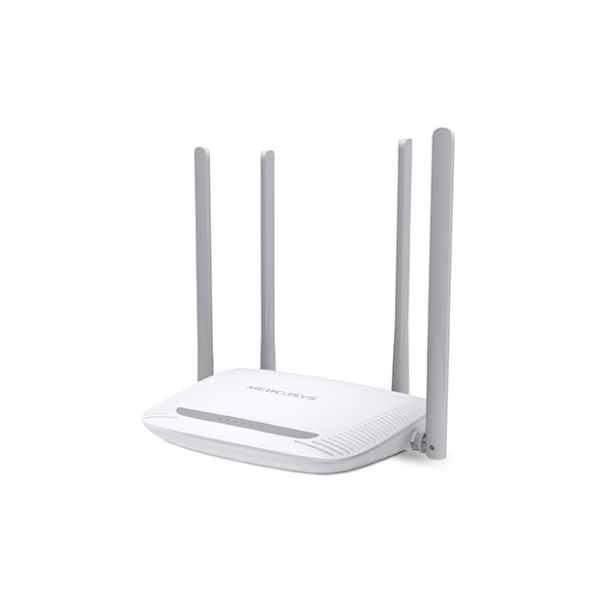

4 antennas WiFi router N 300Mbps Mercusys MW325R
Wireless WiFi 802.11n desktop router 2.4GHz at 300Mbps speed with 4 high-gain antennas to offer a strong signal of up to 500m2 of range* . Its high coverage range eliminates any blind spot in your home, the WiFi signal will reach all rooms with an always stable connection. This router also has 3 RJ45 Fast Ethernet (10/100 Mbps) ports for wired connection.
300Mbps wireless speed for HD streaming video, online gaming and large file downloads. Its 2x2 MIMO technology and its 4 antennas guarantee a connection without delays while enjoying online games or streaming in high definition.
* Range specifications are based on performance test results. Real performance varies in accordance with application and environmental conditions.
WiFi 802.11n long-range desktop router in the 2.4GHz band at 300Mbps.
What are the main features of the Mercusys MW325R router?
Great Coverage – four 5dBi antennas provide wide wireless coverage
Enhanced Signal – high gain antennas dramatically increase wireless signal strength, size and stability
300Mbps Wireless Speed - ideal for HD streaming, online gaming, and large file downloads
Easy Installation - intuitive webpage guides you through the setup process in minutes
What technical specifications does the Mercusys MW325R router have?
External Power Supply
5VDC/0.6A
Antenna Type
4 x 5dBi fixed omni directional antennas
Signal Rate
11n: Up to 300Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)
Button
Reset button
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
2.4 - 2.5GHz
Reception Sensitivity
270M: -70dBm@10% PER
130M: -72dBm@10% PER
54M: -74dBm@10% PER
11M: -87dBm@10% PER
6M: -92dBm@10% PER
1M: -94dBm@10% PER
Interfaces
3 10/100Mbps LAN ports
1 10/100Mbps WAN port
Certifications
CE, ROHS
Package Contents
300Mbps Enhanced Wireless N Router
MW325R
Power adapter
Quick installation guide
RJ45 Ethernet cable
Environment
Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F)
Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F)
Operating humidity: 10% ~ 90%, non-condensing
Storage humidity: 5% ~ 90%, non-condensing
Transmission Power
<20dBm
Wireless Security
WPA-PSK / WPA2-PSK
Wireless Functions
Enable/Disable Wireless Radio, WDS Bridge
WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management
Access control
Local management
Remote management
DHCP
Server, DHCP Client List
Port Forwarding
Virtual server, UPnP, DMZ
Dynamic DNS
Oray
Firewall Security
IP and MAC address binding
Protocols
IPv4
Guest Network
2.4GHz guest network
Dimensions (W X D X H)
167 x 118 x 33 mm
More Information EAN 6957939000424 Hight 0.250 Length 0.060 Width 0.310 REDES - System WiFi REDES - SERIE 10/100 Mbps Color White Network Equipment Router Ports 4 Data Speed Fast Ethernet (10/100Mbps) PoE No Product Brand Mercusys
File Label Size Download Ficha técnica del Router Mercusys N 300Mbps MW325R 1.8 MB Download
