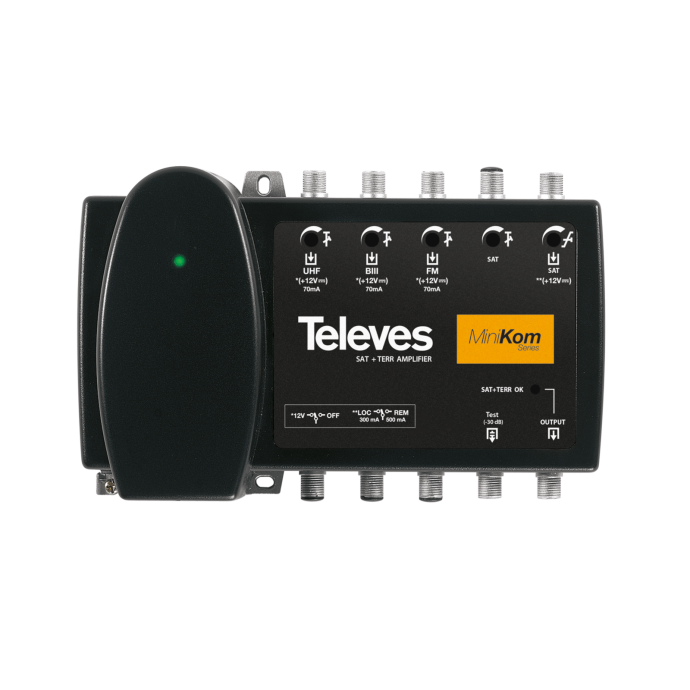

MiniKom Broadband Amplifier (FM-BIII-UHF-FI) LTE 5G

Name: MiniKom Broadband Amplifier (FM-BIII-UHF-FI) LTE 5G
Brand: Televes
SKU: TEL539620
Price: 139.53 EUR
Availability: InStock

SKU

TEL539620

Brands: Televes

€139.53 Tax included

Availability: On request

Delivery: 1 to 7 days

Be the first to review this product

Broadband Amplifier MiniKom 4 inputs (FM-BIII-UHF-FI) LTE 5G Televes 539620

MiniKom broadband amplifier with 4 inputs (FM-BIII-UHF-FI) and 1 output, adapted to the 2nd Digital Dividend with integrated LTE 5G filter.

Central with separate amplification that guarantees the absence of interferences between inputs. This amplifier offers a maximum gain of 40dB (approx.), With 0-20dB attenuators on each input. The maximum supported output level is 114dBμV for Terrestrial and 124dBμV for Satellite.

This amplifier has a switchable current pass (ON/OFF) for powering preamps or BOSS systems, as well as selection of the LNB power supply: local (V-low) or remote.

Details

MiniKom broadband amplifier of 4 inputs (FM-BIII-UHF-FI) with integrated 5G LTE filter

What are the main characteristics of the Central MiniKom Televes 539620?

Amplificación separada que mejora el nivel de salida sin provocar interferencias entre bandas
Atenuadores de ganancia en cada entrada (0-20 dB), con tecnología de diodos PIN
Alto nivel de salida
Chasis de alto blindaje, fabricado en Zamak
Conectores F
Ecualizador de FI
LED indicador de señal en salida
Switch de selección de la alimentación de LNB: local (V-baja) o remota
Switch para alimentación de preamplificadores o sistemas BOSS
Salida de test (-30 dB)
Atornillable en pared

What technical specifications does the Central MiniKom Televes 539620 have?

Inputs			UHF	BIII	FM	IF
Frequency Margin		MHz	470-694	174-254	88-108	950-2150
Gain		dB	39 ± 3	35 ± 3	17 ± 2	35 ± 3 (950Mhz.) 41 ± 3 (2150Ghz.)
Input attenuation range		dB	0 - 20
Equalisation range		dB	---			0-15
Input/Output return losses		dB	>10			>10
Noise figure		dB	7	< 6	< 9	10
Max. Output level	(DIN45004B) IMD3 (2ch –60dB)	dBµV.	117 114	> 113 > 113	> 113 > 110	---
	(EN50083) IMD3 (2ch –35dB)		---			124
Max. Input line power supply		Vdc	12
		mA	70	70	70	300*
Total input DC		mA	300* (12Vdc)
Power supply LNB (REMOTE)		mA	---			500
Power supply		V~	220 - 230
Max. Current		mA~	100
Consumption		W	8,2
Operating temperature		ºC	-5 to +45
Protection Index			IP 20

More Information

More Information
EAN	8424450208427
Hight	0.440
Length	0.130
Width	0.390
DTT System	Amplificador TDT y SAT
MANUFACTURER SERIES DTT	MiniKom
Color	Black
Type	Broadband station
Entorno	Interior
Input signal	DAB, FI, FM, UHF
# Inputs	4
Outputs	1
Gain	39
Max. output level Ganancia (dB/uV)	114
LTE compatible	No
Product Brand	Televes
