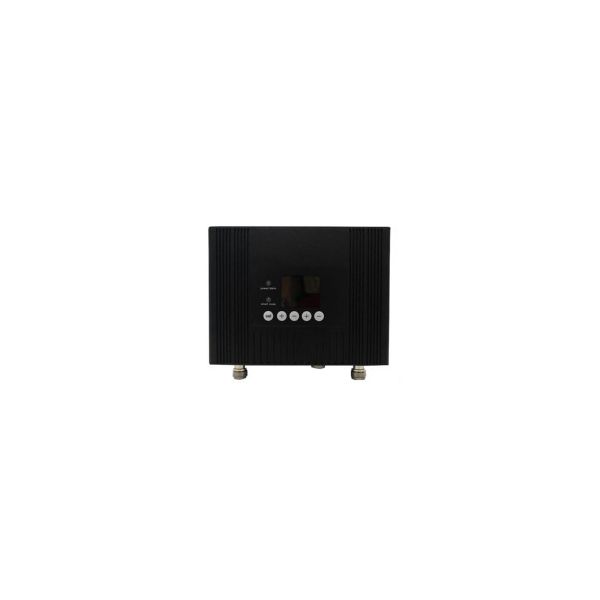

Mobile Repeater Kit 800/900MHz EGSM 2G/3G/4G Automatic/Manual Adjustment

This repeater works on two bands, both at 80MHz and 900MHz and adjusts by frequency automatically or manually. We will use this kit when the coverage in a location is insufficient or very low.

We will install the repeater outside the building, where there is coverage, running a cable inside to improve mobile coverage.

It works at two frequencies: 800MHz and 900MHz.

The kit contains:


*1 Mobile Repeater
*1 Outdoor Directional Antenna
*1 Omnidirectional Indoor Antenna
*2 10 meter cable patch cords.





Technical Specifications of the Mobile Repeater Kit 800/900MHz EGSM 2G/3G/4G Automatic/Manual Adjustment



Maximum Output Power   15 dbm 20 dBm
Spec. electrical Upload (Mhz) Download(MHz)
Frequency range EGSM 880-915 925-960
800 832-862 791-821
Ganancia Máxima 75dB 70dB
MCG (Manual dimming with buttons) Ø    31dB/ 1dB per step
AGC (automatic gain control) Ø       25 dB,auto disconnection from 25dB
Emission of spurious 9KHz-1GHz < -36dBm
1GHz-12.75GHz < -30dBm
Frequency Stability < 0.01 ppm
Noise Figure < 6dB
VSWR < 2.0
Group Delay < 1 µs
smart features Standard. LED ON/OFF
AGC alarm Red alarm when AGC control over 10dB
output signal power Output signal power is displayed
with numbers
Alarm LED standar
power led (Power) power indicator
ALC led orange, ALC 1-5dB, red ALC 15dB-20dB
Red LED turns off after 5 seconds
Mechanical Specifications standar
Input/Output Ports N female
Impedance 50 Ohms
operating temperature -10°C - +50°C
Environmental conditions IP40
Dimensions 128x170x65 mm
Weight <2,5 Kg
Feeding input 100-240Vca; output 9Vcc/5A
