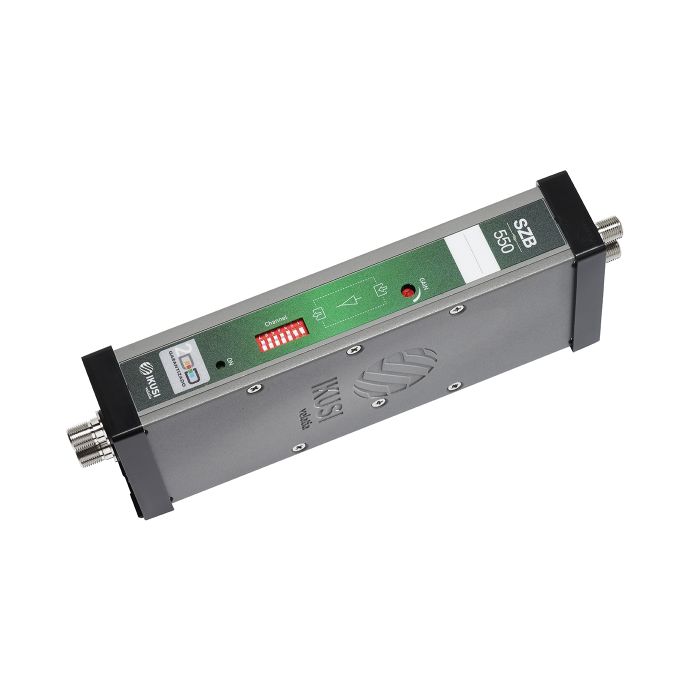

Modular UHF modular amplifier SZB + 550 by Ikusi

SKU
IKU2260
Brands: Ikusi
€74.98 Tax included
Availability: In stock
24/48 Hours

Configurable UHF single channel amplifier from Ikusi

The Ikusi SZB + 550 single-channel amplifier is used in medium and large digital TV collective installations.

This single channel is ideal to adapt your header to the digital dividend. Thanks to this single-channel amplifier, your installation will gain very good quality of constant output signal throughout the range of adjustment of output levels.

Manufactured in a metal chassis of a single piece with connection type F and is characterized by its immunity against impulsive noise.

This single channel has automatic gain control and allows the installer to configure the desired channel.

-
+

Technical Specifications of the Ikusi Configurable UHF Single-Channel Amplifier

Modular amplifier, ideal for amplification and filtering of TV signals in MATV header systems.

What technical characteristics does the SZB + 550 modular amplifier have?

  • Simple and manual configuration, by the installer.
  • A single stock reference for the entire UHF band (C21 ... 48).
  • Compatible with existing headers, same format, same power.
  • Automatic control of gain / stability of the output level.
  • Adjustable filter from single-channel to four-channel.
  • Greater dynamic input range (allows to work with weaker signals).
  • Low level of noise figure.
  • Mounting without tools on wall mounting brackets.



What technical specifications does the 2260 modular amplifier have?

  • TV system: AM-TV / DVB-T
  • Connection: F female
  • Covered band MHz: 470 - 694
  • Filter bandwidth
  • Channel: 1/2/3/4
  • MHz: 8/16/24/32
  • Input level dBμV: 40 - 90
  • Automatic Gain Control dB: 50
  • Regulation output level dB: 30
  • Typical output level (IMD3 -35 dB) dBμV: 121
  • Selectivity at the end of the channel ± 1 MHz dB: 26
  • Loss of return output Z dB:> 10
  • Step losses at the Z dB output: 0.5
  • VDC power: +24
  • Typical consumption mA: 250
  • Operating temperature ºC: 0 ... + 45
More Information
EAN 8435136422600
Hight 0.240
Length 0.040
Width 0.100
DTT System DTT Amplifier
MANUFACTURER SERIES DTT F-connector
Color Green
Type Single channel amplifier
Entorno Interior
# Inputs 2
Outputs 2
Gain 50
Max. output level Ganancia (dB/uV) 121
LTE compatible No
Product Brand Ikusi
