Module 4 Relays Meet by Fermax

SKU
FER1491
Brands: Fermax
€98.40 Tax included
Fermax
Availability: On request
1 to 7 days

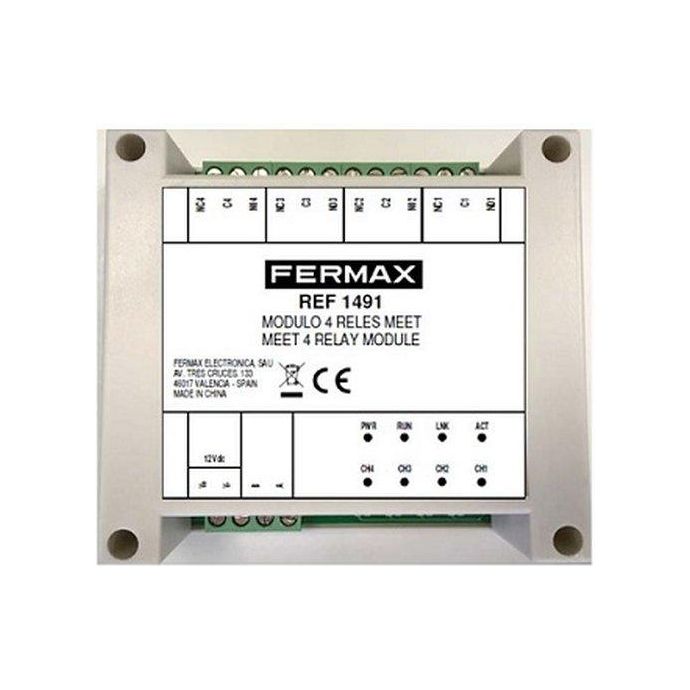

Fermax Meet Series 4 Relay Module

This module is an additional device for digital building systems. The module integrates 4 relays that will allow the additional opening of up to 4 doors of a specific block or auxiliary doors of an urbanization, such as: garage door, access doors to private areas, access doors.

It is compatible with Fermax MEET series plates. Its mode of operation is very simple, we install the module on the block plate, to control the doors of a certain block, or on the general plate if we want to control general accesses of the urbanization.

When a call is received, we can respond by opening the main lock release or any of the 4 additional lock releases.

Technical Specifications of the 4-Relay Module of the Fermax Meet Series


TECHNICAL SPECIFICATIONS

Feeding:

7-26 Vdc (12Vdc recommended)
Standby: 0.28W
· Maximum: 5.5W

Connections:

RS-485 Modbus bus
Outputs of the 4 relays: COM/NO/NC

Operative:

Relay contacts: 220V/5A
· Status LEDs:
or Power. On if powered.
o RUN: Flashing after feeding.
o LNK: Reception of a packet at the last minute.
o ACT: activity on the RS-485 bus.
Relay activated: CH1-CH4

Work environment:

· Temperature: -40 oC .. +55 oC
· Humidity: 10 – 95% (Not condensing)
IP: 51

Dimensions:

115(W) x 90(H) x 40(D)m
Mounting on 35 mm DIN rail

Technology: MEET

Product measurements: 115 X 90 X 40 mm

Weight: 0.211kg

Packaged product measurements: 6.3x17.7x9.5 cm

EAN 13: 8424299014913

More Information
EAN8424299014913
Hight0.180
Length0.060
Width0.100
ACCESOS - SISTEMARele
ACCESOS - SERIEMEET
ColorBeige
Color Portero/VideoporteroSolo Audio
Typereplacement
Product BrandFermax
