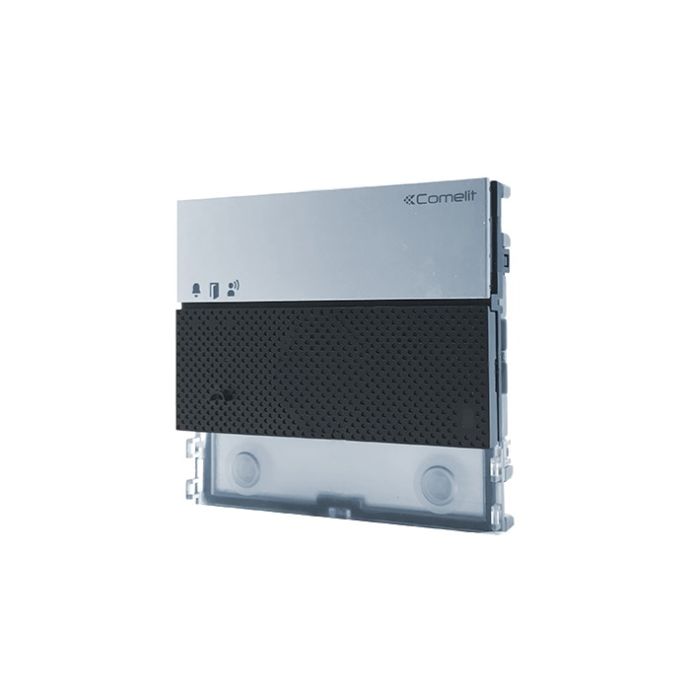

Módulo Audio Ultra Simplebus1 UT1010

Name: Módulo Audio Ultra Simplebus1 UT1010
Brand: Comelit
SKU: COMUT1010
Price: 112.31 EUR
Availability: InStock

SKU

COMUT1010

Brands: Comelit

€112.31 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

Comelit Audio Module for Ultra Simplebus1 UT1010 Button Panel

This audio module is easy to install and configure and is ready for 2 call buttons. It is used for Ultra Simplebus1 entrance panels.

It has intelligent programming of the call buttons, which makes it the most technologically advanced push button panel with the maximum ease of installation.

You will be able to make adjustments and programming without removing the module. Its omnidirectional digital microphone and speakers are double for high-fidelity audio. It also contains audio and video help signals for people with disabilities.

Dimensions: 1 Ultra module. It can be used in systems with power supply ref. 1595 and ref. 4888C.

Its twilight sensor allows the backlighting of the card holders to automatically turn off during the day.

Details

Technical Specifications of the Comelit Audio Module for Ultra Simplebus1 UT1010 Button Panel

GENERAL DATA
Type	Modular
Height (mm)	90
Width (mm)	100
Depth (mm)	35
Product color	Aluminium, Black RAL9005, Transparent
Product weight (g)	275
Type of finishing materials	Polycarbonate, Aluminium alloy
Flush-mounted	Yes, with a dedicated accessory
Wall-mounted	Yes, with a dedicated accessory

COMPATIBLE SYSTEMS
Audio/video Simplebus 2 with power supply art. 4888C	Yes
Audio Simplebus 1	Yes

AUDIO FEATURES
Microphone	MEMS audio digital sensor, omnidirectional
Loudspeaker	28mm (Ø), 8 Ohm, 1W (2)
Technologies implemented	Full-Duplex

ELECTRICAL CHARACTERISTICS
Type of power supply	External power supply
Supply voltage	33VDC
Absorption in stand-by (W)	1,5
Maximum absorption (W)	3,5

HARDWARE FEATURES
Call type	Push-buttons
Number of push-buttons (n°)	2
Backlight colour	White, Off

HARDWARE FEATURES
Clamps	L L V+ V- COM NC NO SE GND RTE TX- TX+ RX- RX+
Number of inputs (n°)	1
Number of outputs (n°)	2
Type of outputs	Relay (C-NO-NC, 4A@12÷24 VAC/VDC, 10A peak), SE: unlock pulse of 4A, holding current of 200mA for 12VAC / DC locks (maximum impedance 18 Ohm)
Communication ports	Micro-USB
Twilight sensor	Yes
