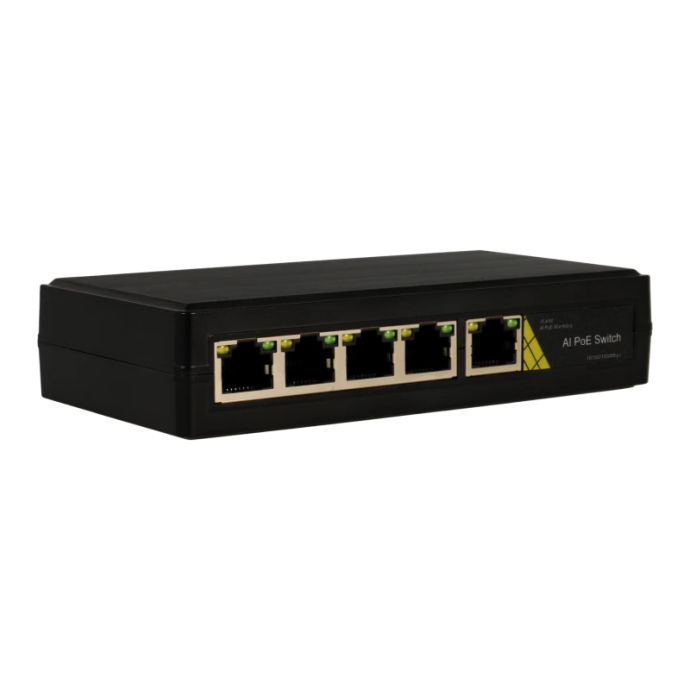

Movok 4 Port 1GB POE+ Extender Outdoor Switch

SKU
VK-EXTENDER-0504POE+-60-G-OUT
Brands: Movok
€52.51 Tax included
Movok
Availability: On request
1 to 7 days

Movok 4 Port 1GB POE+ Extender Outdoor Switch

This PoE switch is designed to be installed in outdoor areas that require robust and efficient network connections. It has 4 RJ45 PoE ports and 1 Gigabit Ethernet uplink port (10/100/1000Mbps), allowing connection and power to multiple network devices through a single Ethernet cable.

It supports up to 60W of power on its ports, with a power per port of up to 30W. We can use this switch in video surveillance installations where it is required to connect IP cameras outdoors, being able to connect up to 4 security cameras with stable and secure data transmissions and with a capacity to extend the network up to 130 meters.

Technical Specifications of the Movok 4 Port 1GB Outdoor POE+ Extender Switch

Specs and Features

Type POE extender switch

Power consumption

PoE Power yes
Maximum consumption per port (PoE)) Ports 1 , 2 , 3 ≤ 30W , Puerto 4 ≤ 60W
Maximum total consumption (PoE) 60W

Ambient

Operating temperature -30 ºC ~ 60 ºC
Use Indoor/ Outdoor
Maximum humidity 90%
Lightning protection 6KV

Material and dimensions

Dimensions 230 x 165 x 70 mm
Net weight 430 g
Weight with packaging 570 g

ETHERNET PORTS

POE Ports 4
Uplink ports 1
Speed POE Ports 10 / 100 / 1000
Uplink port speed 10 / 100 / 1000
Total number of ports 5

NETWORK STANDARD

IEEE802,3af yes
IEEE802,3at yes
IEEE802.3u yes
IEEE 802.3x yes
IEEE802.3ab yes
IEEE802.3bt yes

CHARACTERISTICS (SWITCH)

Supported data rateSupported data rate
  10 Gbps
Maximum transmission distance 130 m
Flow control Full Duplex
PoE Watchdog Yes
More Information
Hight0.000
Length0.000
Width0.000
REDES - SystemPOE
REDES - SERIE4 Ports
ColorBlack
Network EquipmentSwitch
Ports4
Data SpeedGigabit (10/100/1000Mbps)
PoEYes
Product BrandMovok
Write Your Own Review
You're reviewing:Movok 4 Port 1GB POE+ Extender Outdoor Switch
Your Rating
File Label Size Download
pdf Ficha Técnica Switch 4 Puertos 1GB Extensor POE+ Exterior de Movok 389.1 KB Download
