Multi-user Gateway for Comelit VIP System (TA)

SKU
COM1456B
Brands: Comelit
€434.00 Tax included
Free shipping
(Iberian Peninsula)
Availability: On request
1 to 7 days

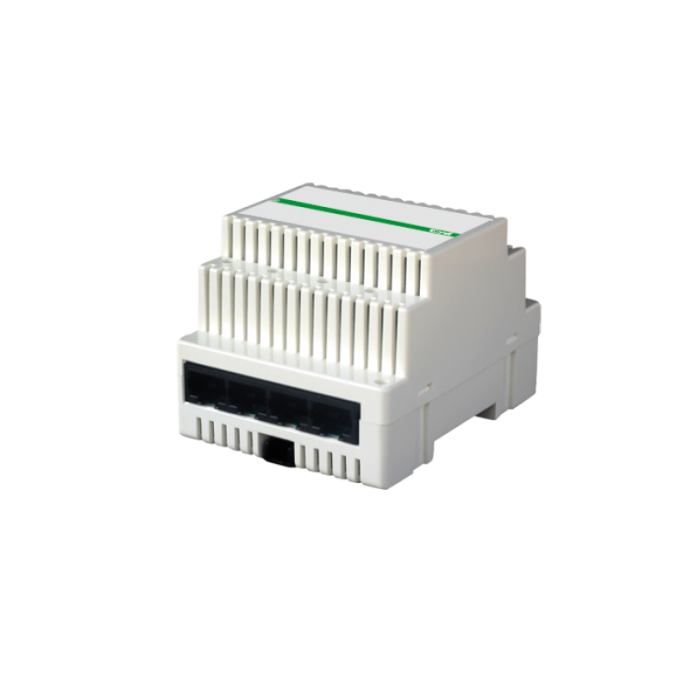

Multi-user Gateway for Comelit VIP 1456B System

This Gateway allows you to send calls from the video intercom to the VIP internal units, Tablet, smartphone on which the Comelit App is installed.

This module requires an internet connection with adequate bandwidth to function correctly. To be able to use it, it is necessary to purchase as many licenses as there are homes you want to provide with the service, and you can manage up to 3 types of licenses: master, slave and telephone.

With this module we can manage up to 400 Master licenses or up to 200 Slave or Telephone licenses. From each home the call can be sent to a maximum of 15 different devices.

The call forwarding module has an Ethernet output for connection to the VIP system network and 4 ports for connection to the internal units and the router. It also has a 40-56VDC power input.

Dimensions: 70x90x62mm (4 DIN modules).

-
+

Technical Specifications of the Comelit Multi-User Gateway for VIP 1456B System



MULTI-USER GATEWAY FOR VIP SYSTEM

MAIN FEATURES

Height (mm)

62

Width (mm)

70

Depth (mm)

90

Operating temperature (°C)

-5 ÷ 50

Operating humidity (RH max) (%)

25 ÷ 75

IP protection rating

IP30

DIN rail mounted

Yes

DIN modules (no.) (n°)

4

SOFTWARE/FIRMWARE SPECIFICATIONS

IP assignment

AUTO IP, DHCP, STATIC

COMPATIBILITY

Vip system

Yes

LICENSES



Master: 400 max. Slave: 200 max. Phone: 200 max

CONNECTIVITY

Ethernet ports (n°)

5

ELECTRICAL SPECIFICATIONS

Supply voltage

48÷56 VDC

PoE power supply

Comelit PoE (56VDC)

Maximum current absorption (mA)

50





More Information
EAN 8023903284591
Hight 0.080
Length 0.050
Width 0.070
System IP
SERIE VIP
Color Silver
Color Portero/Videoportero Color
Type Accessories
Product Brand Comelit
