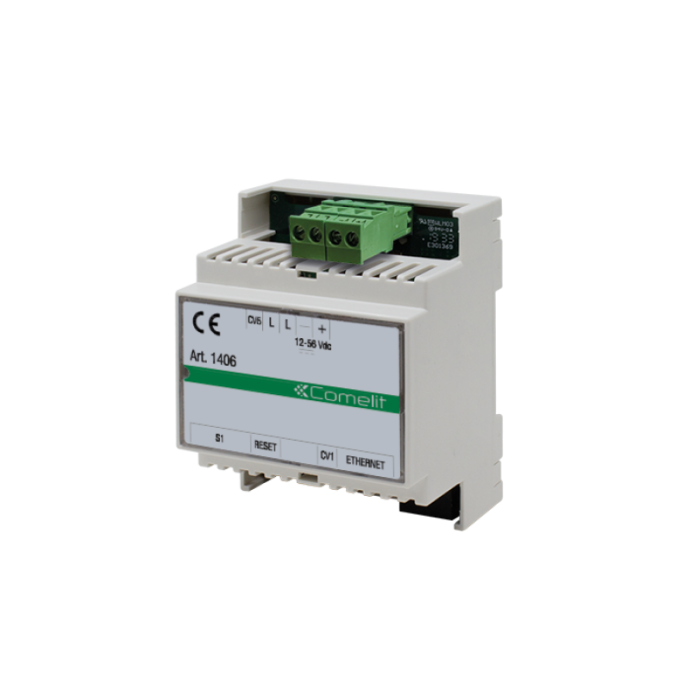

Multi-user gateway for Simplebus2 systems

SKU
COM1406
Brands: Comelit
€1,378.90 Tax included
Free shipping
(Iberian Peninsula)
Comelit
Availability: On request
1 to 7 days

Multi-user call forwarding module for Simplebus2

This module allows multi-user call forwarding from the video door entry unit to smartphones or tablets on which the SimpleApp application is installed.

This module requires an internet connection with adequate bandwidth to function correctly.

With this module we can manage up to 50 homes and up to 15 users can be enabled for each home. In the case of needing more than 50 homes, several modules can be installed.

The call forwarding module has an ethernet output and a 12-56VDC power input.

Dimensions: 70x90x62mm (4 DIN modules).

Technical Specifications of the Multi-user Call Forwarding Module for Simplebus2



MAIN FEATURES
Height (mm) 59
Width (mm) 70
Depth (mm)
90
Operating temperature (°C) 5 ÷ 50
Operating humidity (RH max) (%)
25 ÷ 95
IP protection rating IP20
DIN rail mounted
Yes
DIN modules (no.) (n°) 4
SOFTWARE/FIRMWARE SPECIFICATIONS
IP assignment DHCP
CONNECTIVITY
Ethernet ports (n°) 1
ELECTRICAL SPECIFICATIONS
Supply voltage 12÷56VDC
Max/min absorption (mA) 80 ÷ 250
More Information
EAN8023903419634
Hight0.250
Length0.040
Width0.100
ACCESOS - SISTEMASimplebus (2 threads)
ACCESOS - SERIEModulo Llamada
ColorWhite
TypeAccessories
Product BrandComelit
