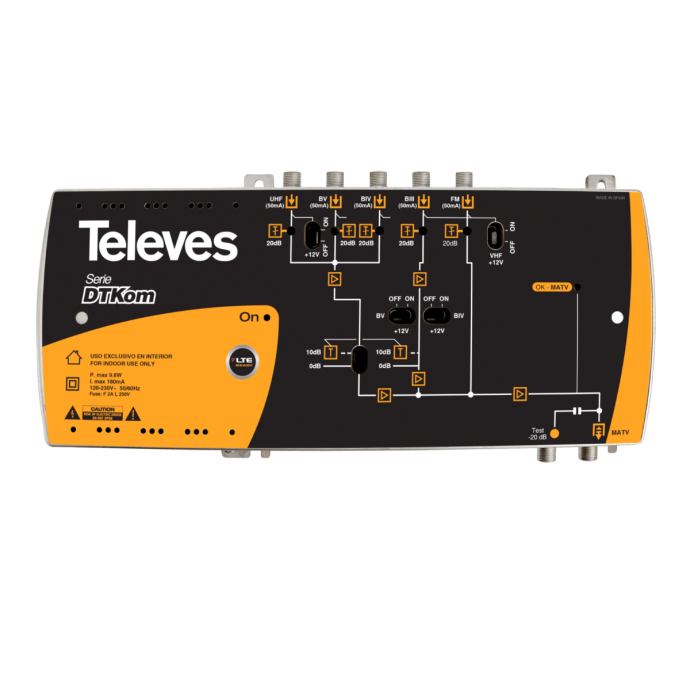

Multiband Amplifier DTKOM FM-BIII-BIV-BV-UHF 42dB LTE 5G

Name: Multiband Amplifier DTKOM FM-BIII-BIV-BV-UHF 42dB LTE 5G
Brand: Televes
SKU: TEL534120
Price: 242.41 EUR
Availability: InStock

SKU

TEL534120

Brands: Televes

€242.41 Tax included

Availability: On request

Delivery: 1 to 7 days

Be the first to review this product

Broadband Amplifier DTKOM FM-BIII-BIV-BV-UHF 42dB LTE 5G

DTKOM terrestrial amplifier with 5 inputs (FM-BIII-BIV-BV-UHF) with integrated 5G LTE filter. Broadband amplifier of high power and low noise figure, with multiple front controls, with configurable gain by switch (high/low), a switch for powering preamps or BOSS antennas, and an output signal indicator LED.

The UHF band is divided into 2 inputs, useful in TV installations with two repeaters, it already allows you to filter the channels that do not correspond to each of them.

Head-end amplifier for small collective terrestrial TV installations. Designed with a high shielding chassis, in Zamak, with good cooling. Integrated power supply of high performance and low consumption.

Details

5-Input DTKOM Broadband Amplifier (FM-BIII-21..36-38..48-UHF) with 5G LTE

What technical specifications does the DTKOM Televes 534120 Amplifier have?

Bands			UHF	BV	BIV	BIII	FM
Frequency margin		MHz	470 ... 694	606 ... 694 (Ch38...48)	470 ... 598 (Ch21...36)	174 ... 370	88 ... 108
Gain	0	dB	42	41⁽¹⁾	41⁽²⁾	42	25
	10		32	31⁽¹⁾	31⁽²⁾	32	25
Gain margin			(Manual) 0 ... 20	(Manual) 0 ... 20	(Manual) 0 ... 20	(Manual) 0 ... 20	(Manual) 0 ... 20
Max. output level	IMD3 (2 tones,-35 dB)	dBμV (dBmV)	125 (65)
	DIN 45004B		123 (63)
	IMD3 (2 tones,-60 dB)		120 (60)
	IMD2 (2 tones,-60 dB)		-	-	-	122 (62)	-
Noise figure		dB	10	10	10	5	6
Test			-20
Powering inputs		V=	12
Max. curent inputs		mA	50
Mains voltage /frequency		V~ / Hz	120 ... 230 / 50-60
Total AC consumption	OFF	W / mA	5,8 / 120
	ON	W / mA	9,6 / 180
Protection level		IP	20
Operating temperature range		ºC (ºF)	-5 ... +45 (23 ... 113)

(1) G(Ch38)=37/27dB
(2) G(Ch36)=38/28dB

More Information

More Information
EAN	8424450214558
Hight	0.160
Length	0.070
Width	0.345
DTT System	DTT Amplifier
MANUFACTURER SERIES DTT	DTKOM
Color	Black
Type	Broadband station
Entorno	Interior
Input signal	DAB, FM, UHF, VHF
# Inputs	5
Outputs	1
Gain	42
Max. output level Ganancia (dB/uV)	123
LTE compatible	Yes
Current bypass	Terrestrial
Product Brand	Televes
