Multiband Amplifier DTKOM FM-BIII-BIV-BV-UHF 42dB LTE 5G

Name: Multiband Amplifier DTKOM FM-BIII-BIV-BV-UHF 42dB LTE 5G
Brand: Televes
SKU: TEL534121
Price: 242.41 EUR
Availability: InStock

SKU

TEL534121

Brands: Televes

€242.41 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

Multiband Amplifier DTKOM FM-BIII-BIV-BV-UHF LTE 5G Televes 534121

DTKOM series multiband amplifier for terrestrial TV consisting of 5 inputs (FM-BIII-BIV-BV-UHF) with integrated 5G LTE filter. Amplifier of high power and minimal noise figure, with front controls. Configurable gain via switch (high/low) and high output level. Switch to feed preamps or active antennas.

Of this station, the UHF band is divided into 2 inputs. An ideal solution for TV TERR installations with two repeaters, since in this way the channels corresponding to each input are filtered and prevents them from overlapping each other.

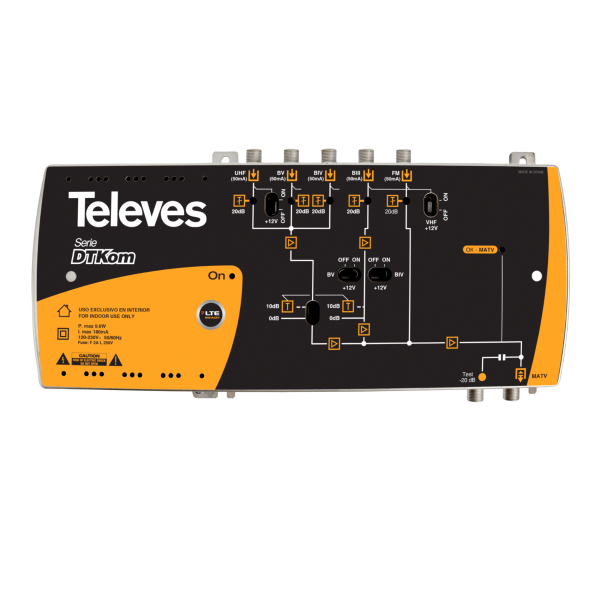

Central amplifier in a high shielding chassis, made of Zamak, with a design that facilitates cooling. It integrates a high performance and low consumption power supply. The block diagram and possible settings are indicated on the face. Includes LED signal indicator at the output.

Details

5-Input DTKOM Multiband Amplifier (FM-BIII-21..32-36..48-UHF) with 5G LTE

What technical specifications does the DTKOM Televes 534121 Amplifier have?

Bands			UHF	BV	BIV	BIII	FM
Frequency margin		MHz	470 ... 694	590 ... 694 (Ch36...48)	470 ... 566 (Ch21...32)	174 ... 370	88 ... 108
Gain	0	dB	42	41⁽¹⁾	41⁽²⁾	42	25
	10		32	31⁽¹⁾	31⁽²⁾	32	25
Gain margin			(Manual) 0 ... 20	(Manual) 0 ... 20	(Manual) 0 ... 20	(Manual) 0 ... 20	(Manual) 0 ... 20
Max. output level	IMD3 (2 tones,-35 dB)	dBμV (dBmV)	125 (65)
	DIN 45004B		123 (63)
	IMD3 (2 tones,-60 dB)		120 (60)
	IMD2 (2 tones,-60 dB)		-	-	-	122 (62)	-
Noise figure		dB	10	10	10	5	6
Test			-20
Powering inputs		V=	12
Max. curent inputs		mA	50
Mains voltage /frequency		V~ / Hz	120 ... 230 / 50-60
Total AC consumption	OFF	W / mA	5,8 / 120
	ON	W / mA	9,6 / 180
Protection level		IP	20
Operating temperature range		ºC (ºF)	-5 ... +45 (23 ... 113)

More Information

More Information
EAN	8424450214565
Hight	0.350
Length	0.040
Width	0.180
DTT System	DTT Amplifier
MANUFACTURER SERIES DTT	DTKOM
Color	Black
Type	Broadband station
Entorno	Interior
Input signal	DAB, FM, UHF, VHF
# Inputs	5
Outputs	1
Gain	42
Max. output level Ganancia (dB/uV)	123
LTE compatible	Yes
Current bypass	Terrestrial
Product Brand	Televes
