Multimode Fiber Optic Patch Cord 3mm Duplex LC/PC – SC/PC LSFH 2m

SKU
TEL230921
Brands: Televes
€11.80 Tax included
13% Discount for professionals
Televes
Availability: On request
1 to 7 days
Be the first to review this product

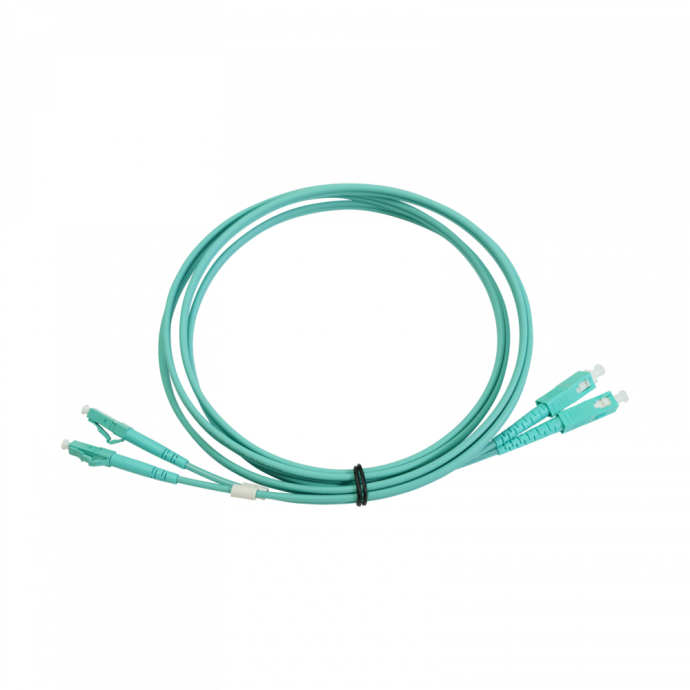

Duplex Multimode Fiber Optic Patch Cord and Length 2m 230921

This fiber optic cable allows the transmission of an optical signal from one device to another separated from each other by a distance of 2 meters.

This fiber optic pigtail is used to connect one end via LC/PC connector and the other end via SC/PC connector. Its cover is halogen-free LSFH, suitable for interiors.

This patch cord is multimode and duplex with the cable in green, it is halogen-free.

-
+

Technical Specifications of the Duplex Multimode Fiber Optic Patch Cord and Length 2m 230921



Fiber core type   Multi-mode (ITU-T-G.651.1)
Optical fiber type category   OM3
Fiber core diameter μm 50
Fiber cladding diameter μm 125
Coating buffer diameter μm 250
Outer sheath Diameter mm 3
Outer sheath Material   LSFH
Blocking jelly   No
Insertion losses in connector 1 dB < 0.3
Insertion losses in connector 2 dB < 0.3
Return losses in connector 1 dB > 30
Return losses in connector 2 dB > 30
Optical connector type 1   LC
Polishing type (Optical connector 1)   PC
Optical connector type 2   SC
Polishing type (Optical connector 2)   PC
Structure reinforcement element   Aramid fibers
Minimum bending radius mm 45
Operating temperature °C -20 ... 70
More Information
More Information
EAN 8424450273838
Hight 0.000
Length 0.000
Width 0.000
Manufacturer Televes
System DTT Optic Fiber
Serie 2m
Fiber type Multimode
Entorno Interior
Color Green
Product Brand Televes
