Multimode Fiber Optic Patch Cord OM3 3mm Duplex LC/PC LSFH 2m

Name: Multimode Fiber Optic Patch Cord OM3 3mm Duplex LC/PC LSFH 2m
Brand: Televes
SKU: TEL230622
Price: 11.82 EUR
Availability: InStock

SKU

TEL230622

Brands: Televes

€11.82 Tax included

Availability: On request

Delivery: 1 to 7 days

Be the first to review this product

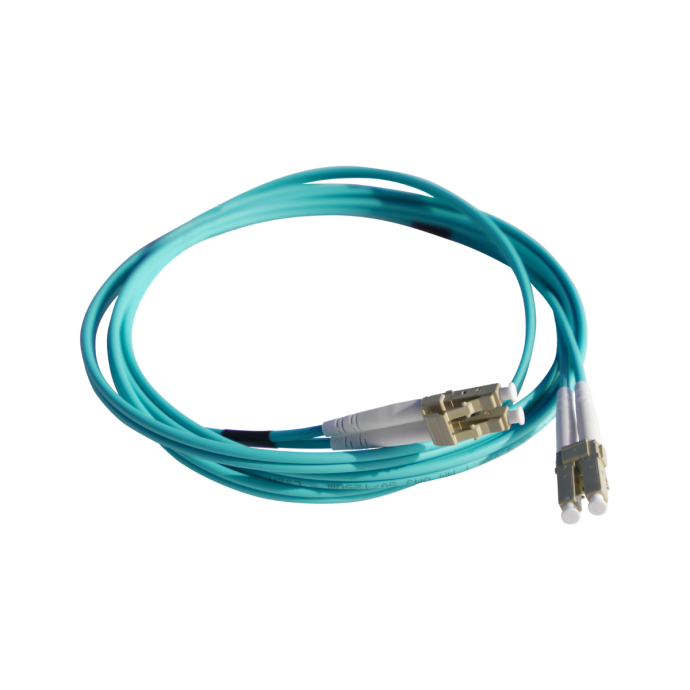

OM3 Multimode patch cord with Duplex LC/PC connector from Televes

This fiber optic patch cord allows the transmission of optical signal from one device to another, separated from each other by a distance of 2 meters.

This fiber optic patch cord has two LC/PC connectors at each end. Its 3mm cover is LSFH halogen-free, suitable for indoors.

This cable comes in aqua blue, the cable type is multimode OM3 ITU-T G.651.1.

Details

Technical Specifications of the OM3 Multimode Patch Cord with Duplex LC/PC connector from Televes

Fiber core type		Multi-mode (ITU-T-G.651.1)
Optical fiber type category		OM3
Fiber core diameter	μm	50
Fiber cladding diameter	μm	125
Coating buffer diameter	μm	250
Cable structure		Tight buffer
Plastic buffer diameter	mm	0.85
Outer sheath Diameter	mm	3
Outer sheath Material		LSFH
Blocking jelly		No
Attenuation 1310nm	dB/km	< 1
Insertion losses in connector 1	dB	< 0.5
Insertion losses in connector 2	dB	< 0.5
Return losses in connector 1	dB	> 30
Return losses in connector 2	dB	> 30
Optical connector type 1		LC
Polishing type (Optical connector 1)		PC
Optical connector type 2		LC
Polishing type (Optical connector 2)		PC
Short tension	N	450
Long tension	N	200
Structure reinforcement element		Aramid fibers
Short crush (@100mm)	N	500
Long crush (@100mm)	N	100
Minimum bending radius	mm	15
Operating temperature	°C	-20 ... 70
