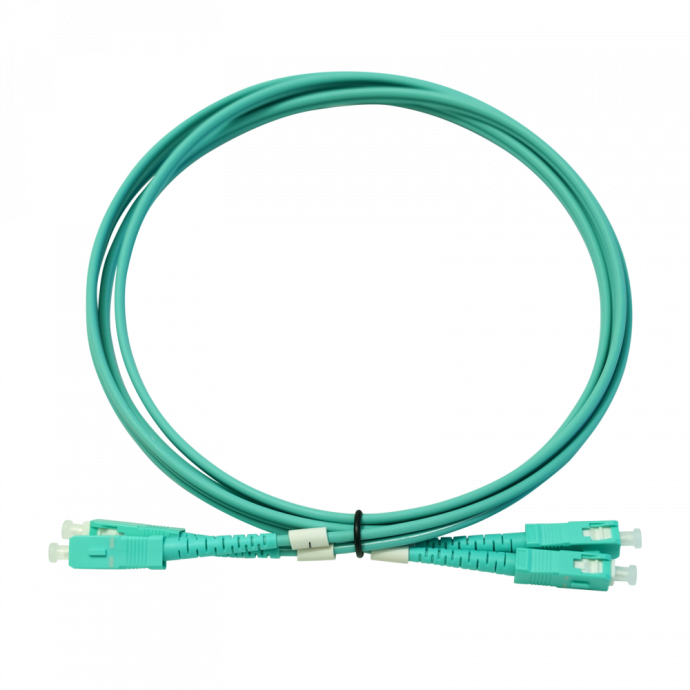

Multimode Fiber Optic Patch Cord OM3 3mm Duplex SC/PC LSFH 2m

SKU

TEL230920

Brands: Televes

€11.80 Tax included

Availability: On request

Delivery: 1 to 7 days

Be the first to review this product

OM3 Multimode patch cord with Duplex SC/PC connector from Televes

This fiber optic patch cord allows the transmission of optical signal from one device to another, separated from each other by a distance of 2 meters.

This fiber optic patch cord has an SC/PC connector at each end. Its 3mm cover is LSFH halogen-free, suitable for indoors.

This cable comes in aqua blue, the cable type is multimode OM3 ITU-T G.651.1.

Technical Specifications of the OM3 Multimode Patch Cord with Duplex SC/PC connector from Televes

Fiber core type		Multi-mode (ITU-T-G.651.1)
Optical fiber type category		OM3
Fiber core diameter	μm	50
Fiber cladding diameter	μm	125
Coating buffer diameter	μm	250
Outer sheath Diameter	mm	3
Outer sheath Material		LSFH
Blocking jelly		No
Insertion losses in connector 1	dB	< 0.3
Insertion losses in connector 2	dB	< 0.3
Return losses in connector 1	dB	> 30
Return losses in connector 2	dB	> 30
Optical connector type 1		SC
Polishing type (Optical connector 1)		PC
Optical connector type 2		SC
Polishing type (Optical connector 2)		PC
Structure reinforcement element		Aramid fibers
Minimum bending radius	mm	45
Operating temperature	°C	-20 ... 70

More Information

More Information
EAN	8424450277171
Hight	0.000
Length	0.000
Width	0.000
System DTT	Multimode
Serie	2m
Fiber type	Multimode
Entorno	Interior
Color	Green
Product Brand	Televes
