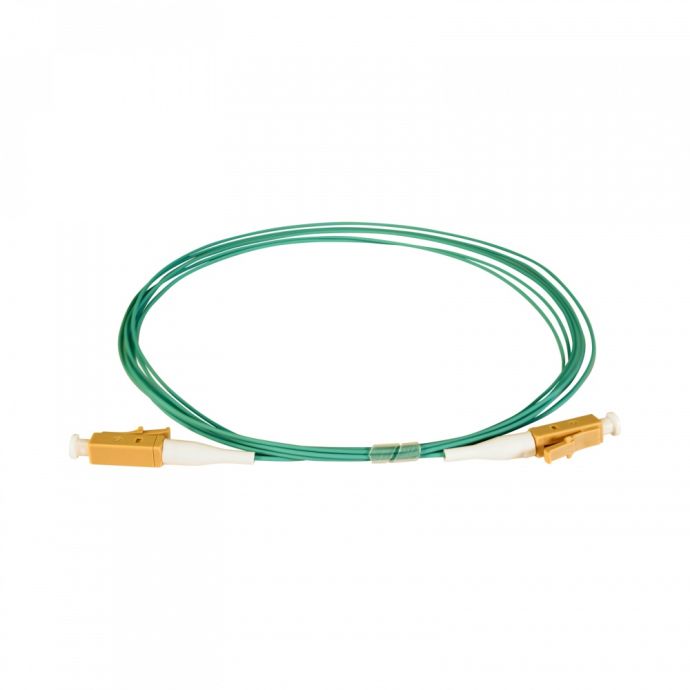

Multimode Fiber Optic Patch Cord OM3 900μm Simplex LC/PC LSFH 2m Convertible

SKU
TEL230601
Brands: Televes
€4.57 Tax included
Availability: On request
1 to 7 days

OM3 Multimode patch cord with Televes Simplex LC/PC connector

This fiber optic patch cord allows the transmission of optical signal from one device to another, separated from each other by a distance of 2 meters.

This fiber optic patch cord has an LC/PC connector at each end. Its 0.9mm cover is LSFH halogen-free, suitable for indoors.

This cable comes in aqua green, the cable type is multimode OM3 ITU-T G.651.1.

-
+

Technical Specifications of the OM3 Multimode Patch Cord with Simplex LC/PC connector from Televes

Fiber core type   Multi-mode (ITU-T-G.651.1)
Optical fiber type category   OM3
Fiber core diameter μm 50
Fiber cladding diameter μm 125
Cable structure   Loose tube
Outer sheath Diameter mm 0.9
Outer sheath Material   LSFH
Blocking jelly   No
Attenuation 1310nm dB/km < 1
Insertion losses in connector 1 dB < 0.5
Insertion losses in connector 2 dB < 0.5
Return losses in connector 1 dB > 30
Return losses in connector 2 dB > 30
Optical connector type 1   LC
Polishing type (Optical connector 1)   PC
Optical connector type 2   LC
Polishing type (Optical connector 2)   PC
Minimum bending radius mm 4.5
Operating temperature °C -20 ... 70
More Information
EAN 8424450240939
Hight 0.000
Length 0.000
Width 0.000
System DTT Optic Fiber
Serie 2m
Fiber type Multimode
Color Green
Product Brand Televes
