Multimode Fiber Optic Patch Cord OM4 3mm Duplex LC/PC – SC/PC LSFH 2m

Name: Multimode Fiber Optic Patch Cord OM4 3mm Duplex LC/PC – SC/PC LSFH 2m
Brand: Televes
SKU: TEL230931
Price: 16.79 EUR
Availability: InStock

SKU

TEL230931

Brands: Televes

€16.79 Tax included

Availability: On request

Delivery: 1 to 7 days

Be the first to review this product

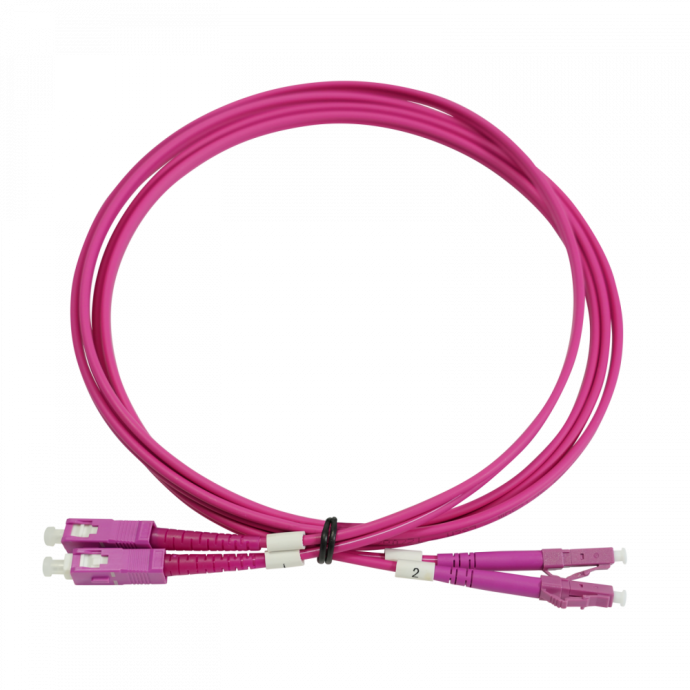

OM4 Multimode patch cord with Duplex LC/PC – SC/PC connector from Televes

This fiber optic patch cord allows the transmission of optical signal from one device to another, separated from each other by a distance of 2 meters. These patch cords are mainly used to interconnect routers and switches through the SFP ports found in the same rack. In this case it will be used when the switches have OM4 multimode SFP ports with LC/PC connector and are separated by a distance of less than 2 meters.

This fiber optic patch cord has two LC/PC connectors at each end and two SC/PC connectors at the other, since it is duplex. Its 3mm cover is LSFH halogen-free, suitable for indoors.

This cable comes in magenta color, the cable type is multimode OM4 ITU-T G.651.1.

Details

Technical Specifications of the OM4 Multimode Patch Cord with Duplex LC/PC – SC/PC connector from Televes

Fiber core type		Multi-mode (ITU-T-G.651.1)
Optical fiber type category		OM4
Fiber core diameter	μm	50
Fiber cladding diameter	μm	125
Coating buffer diameter	μm	250
Outer sheath Diameter	mm	3
Outer sheath Material		LSFH
Blocking jelly		No
Insertion losses in connector 1	dB	< 0.3
Insertion losses in connector 2	dB	< 0.3
Return losses in connector 1	dB	> 30
Return losses in connector 2	dB	> 30
Optical connector type 1		LC
Polishing type (Optical connector 1)		PC
Optical connector type 2		SC
Polishing type (Optical connector 2)		PC
Structure reinforcement element		Aramid fibers
Minimum bending radius	mm	45
Operating temperature	°C	-20 ... 70
