Multimode Fiber Optic Pigtail 0.9mm Simplex SC/PC LSFH 2m

SKU
TEL230901
Brands: Televes
€4.50 Tax included
Availability: In stock
24/48 Hours

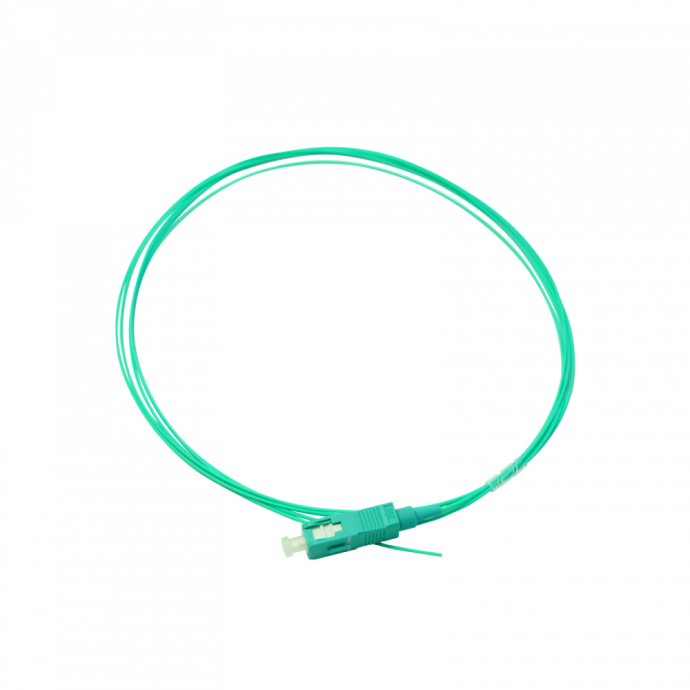

Simplex Multimode Fiber Optic Pigtail and Length 2m

This fiber optic cable allows the transmission of an optical signal from one device to another separated from each other by a distance of 2 meters.

This fiber optic pigtail is used to connect one end via SC/PC connector and the other end to splice to the main cable fiber. Its cover is halogen-free LSFH, suitable for interiors.

This pigtail comes with a free end and the green cable is halogen free.

-
+

Technical Specifications of the Simplex Multimode Fiber Optic Pigtail and Length 2m



Fiber core type   Multi-mode (ITU-T-G.651.1)
Optical fiber type category   OM3
Fiber core diameter μm 50
Fiber cladding diameter μm 125
Coating buffer diameter μm 250
Outer sheath Diameter mm 0.9
Outer sheath Material   LSFH
Blocking jelly   No
Insertion losses in connector 1 dB < 0.3
Return losses in connector 1 dB > 30
Optical connector type 1   SC
Polishing type (Optical connector 1)   PC
Minimum bending radius mm 4.5
Operating temperature °C -20 ... 70
More Information
EAN 8424450273807
Hight 0.001
Length 0.100
Width 0.100
System DTT Optic Fiber
Serie 2m
Fiber type Multimode
Entorno Interior
Color Green
Product Brand Televes
