Multimode Fiber Optic Pigtail OM4 0.9mm Simplex LC/PC LSFH 2m

SKU
TEL230912
Brands: Televes
€4.96 Tax included
13% Discount for professionals
Televes
Availability: On request
1 to 7 days
Be the first to review this product

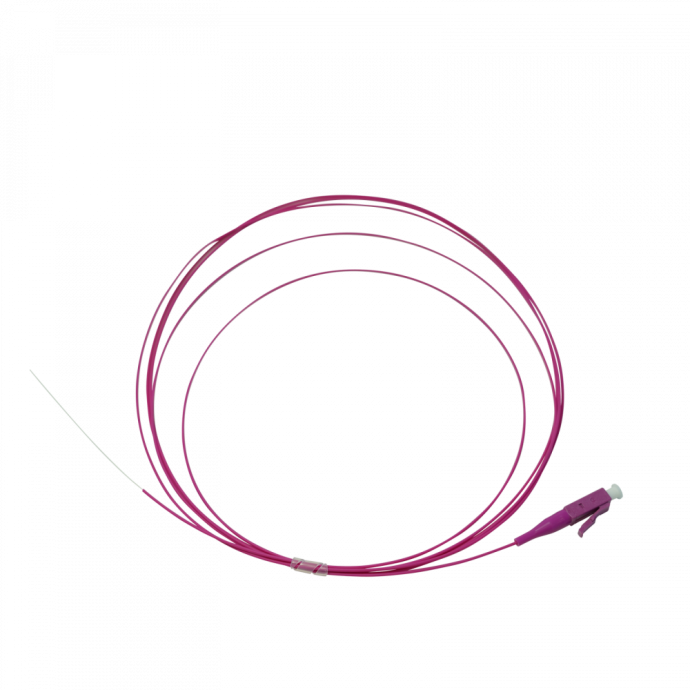

OM4 Multimode Pigtail with Simplex LC/PC connector from Televes

This multimode fiber optic pigtail is used to merge multimode fiber cables in communications racks and extend the signal to another location. The length of this pigtail is 2 meters.

This fiber optic pigtail has an LC/PC connector at one end and the other is free to easily merge with the fiber cable. Its 0.9mm cover is LSFH halogen-free, suitable for indoors.

This cable comes in aqua magenta, the cable type is multimode OM4 ITU-T G.651.1.

-
+

Technical Specifications of the OM4 Multimode Pigtail with Simplex LC/PC connector from Televes



Fiber core type   Multi-mode (ITU-T-G.651.1)
Optical fiber type category   OM4
Fiber core diameter μm 50
Fiber cladding diameter μm 125
Coating buffer diameter μm 250
Outer sheath Diameter mm 0.9
Outer sheath Material   LSFH
Blocking jelly   No
Insertion losses in connector 1 dB < 0.3
Return losses in connector 1 dB > 30
Optical connector type 1   LC
Polishing type (Optical connector 1)   PC
Minimum bending radius mm 4.5
Operating temperature °C -20 ... 70
More Information
More Information
EAN 8424450273821
Hight 0.000
Length 0.000
Width 0.000
System DTT Multimode
Serie 2m
Fiber type Multimode
Entorno Interior
Color Pink
Product Brand Televes
