Multiswitch Euroswitch 9x9x8 ''F'' Terminal/Cascade

SKU
TEL719601
Brands: Televes
€165.79 Tax included
Availability: On request
1 to 7 days

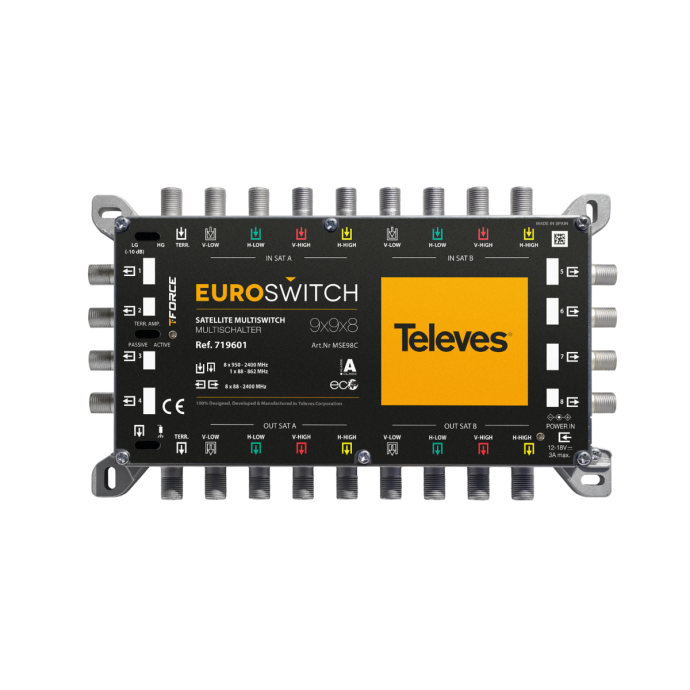

Televes multiswitch 9x9x8 MSE98C

The Televes multiswitch 719601 is a multiswtich with 9 inputs and 8 user outputs. It is very compact and is designed to have very low pass and shunt losses, which allows us to reduce the number of amplifiers needed in the cascade / trunking delivering a much more balanced signal.

This type of multiswitches is used in communities. Of the 9 inputs, one is terrestrial and the remaining 8 are for two satellites, with their four polarities. It presents a great isolation between its inputs and outputs. All inputs have current throughput.

This device works with TForce technology, which automatically adjusts the terrestrial signal to the optimum level and keeps it stable despite variations in reception.

In addition, it can be powered in two different ways, either with a power supply or remotely through the trunk/cascade lines.

Its housing, made of zamak , provides a high shielding. On the housing there is a switch to change the use between casing and terminal. Inputs and outputs are color-coded.

-
+

Televes Multiswitch 9x9x8 MSE98C Technical Specifications

Number of inputs   9
Number of cascadable outputs   9
Number of user outputs   8
Frequency range TERR. MHz 88 ... 862
Frequency range SAT. MHz 950 ... 2400
Input level TERR. dBµV 80 ... 110
Input level SAT. dBµV 65 ... 112
Through losses TERR. dB < 2
Through losses SAT. dB < 2
Tap losses TERR. Active dB 0
Tap losses TERR. Passive dB 30
Tap losses SAT. HG dB 0
Tap losses SAT. LG dB 14 ... 8
Output level 10Ch DVB-T dBµV 78
Isolation H/V dB > 50
Isolation users dB > 30
Powering Vdc 12 ... 18
Max. current (PSU - TERR ACT.) mA 65 *1
Max. current (PSU - TERR PAS.) mA 5
Max. current (STB) mA 85
Operating temperature °C -5 ... 45
Protection index (IP)   20
More Information
EAN 8424450223895
Hight 0.000
Length 0.000
Width 0.000
System SAT Satellite
MANUFACTURER SERIE SAT Euroswitch
Manufacturer Televes
Length 0.5 meters
Color Black
Product Brand Televes
