Radial Active IF Multiswitch 5 Inputs x 32 Outputs Terra

SKU
TERMR532
Brands: Terra
€509.48 Tax included
Free shipping
(Iberian Peninsula)
Availability: On request
1 to 7 days

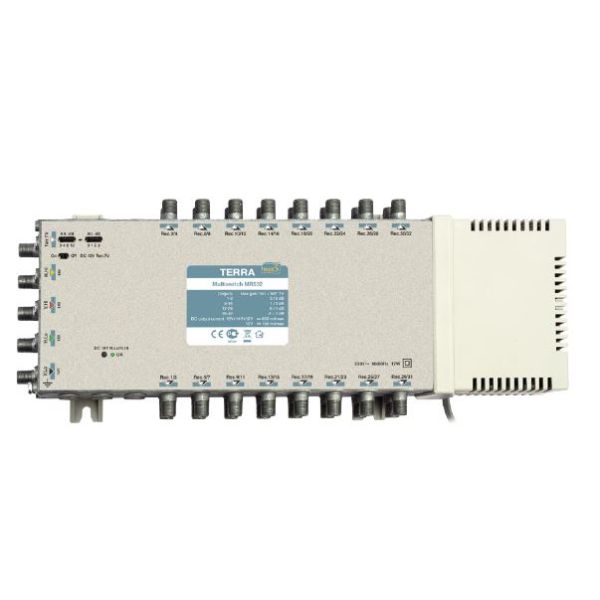

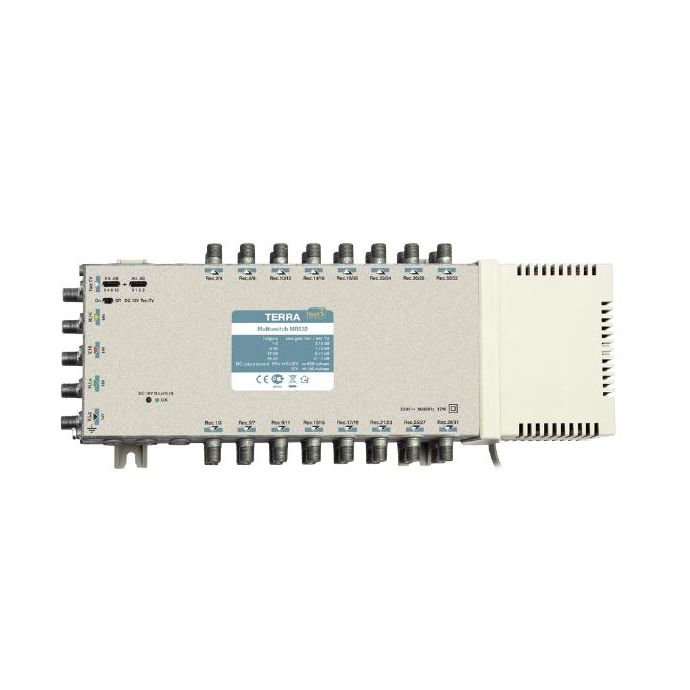

Active Radial Multiswitch 4IF + TERR, 32 OUT Terra TE-MR532

Autonomous Terra multiswitch with 5 inputs (4 SAT + TERR) x 32 outputs, for collective installation in star of 4 SAT polarities and terrestrial TV for up to 32 users.

This multiswitch allows the distribution of 1 complete satellite (H/L, H/H, V/L, V/H) together with a Terrestrial signal up to 32 dwellings, offering each user the possibility of choosing the satellite polarity they wish to view at any time.

Terra available from a wide range of multiswitches with 5 and 9 inputs of high reliability and stability. They have solutions for both small and large collective facilities.



-
+

Active Radial Multiswitch with 4 IF Inputs + 1 TERR and 32 Outputs

What technical specifications does the Terra MR532 Multiswitch have?

  • Number of inputs: 5
  • Number of outputs: 32
  • Frequency range:
  • SAT: 950-2400 MHz
  • TV: 47-862 MHz
  • SAT gain:
    • Output 1-8: -3 ... 5 dB
    • Output 9-16: -4 ... 3 dB
    • Output 17-24: -5 ... 1 dB
    • Output 25-32: -6 ... -1 dB
  • TERR gain:
    • Output 1-8: -2 ... 3 dB
    • Output 9-16: -4 ... 1 dB
    • Output 17-24: -5 ... 0 dB
    • Output 25-32: -6 ... -2 dB
  • Maximum output level for SAT IF (IMD3 = 35dB): 96 dBuV
  • Maximum output level for terrestrial TV (DIN45004B):
    • Output 1-8: 86 dBμV
    • Output 9-16: 84 dBμV
    • Output 17-24: 82 dBμV
    • Output 25-32: 80 dBμV
  • Isolation between SAT inputs:> 30 dB
  • Isolation between outputs:> 30 dB
  • DC voltages at the inputs: H/Lo, H/Hi - 18V; V/Lo, V/Hi - 14V; Terr. TV - 12V
  • Current consumption (from receiver input): <65 mA
  • Control signals: 14/18V, 0/22kHz, Tone Burst or DiSEqC 2.0
  • Power consumption: 230V ~ 50/60Hz 3W
  • Operating temperature range: -20 ºC ~ +50 ºC
More Information
EAN 8403109900028
Hight 0.000
Length 0.000
Width 0.000
System SAT SAT Multiswitch
MANUFACTURER SERIE SAT Autónomo
Color Gray
Type Final
# Input satellites 4
# Terrestrial inputs 1
# Inputs 5
#User outputs 32
Gain (dB) 5
Loos (dB) 6
Power Embedded
LNB type Quattro
Product Brand Terra
Write Your Own Review
You're reviewing:Radial Active IF Multiswitch 5 Inputs x 32 Outputs Terra
Your Rating
File Label Size Download
pdf Ficha técnica de los Multiswitches Terra TE-MR524 y TE-MR532 543.1 KB Download
