Radial Active IF Multiswitch 9 Inputs x 24 Outputs Terra

SKU
TERMR924L
Brands: Tecatel
€627.55 Tax included
Free shipping
(Iberian Peninsula)
Availability: In stock
24/48 Hours

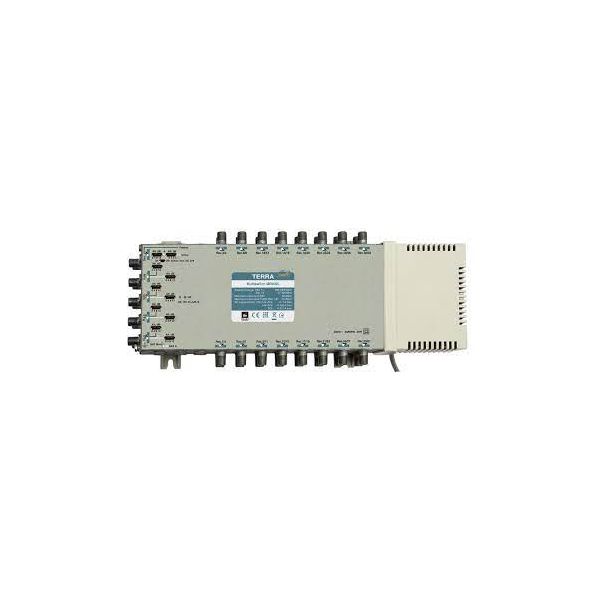

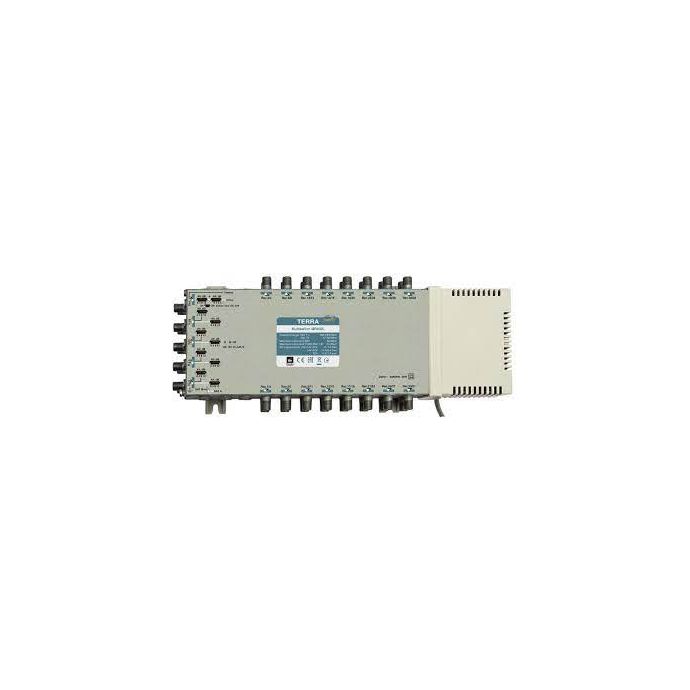

Active Radial Multiswitch 8IF + TERR, 24 OUT Terra TE-MR924L

This autonomous multiswitch from Terra has 8 satellite inputs + 1 terrestrial and 24 outputs. It allows us to distribute the 2 complete satellites, with their 4 polarities (H/L, H/H, V/L, V/H), mixed with terrestrial up to 24 users.

The multiswitches are in charge of automatically changing the satellite polarity demanded by each output, allowing the user to choose between 8 different polarities according to the programs they want to view at any given time.

This multiswitch has high standards of manufacture, stability and reliability, which make Terra multiswitches the leading products on the market.



-
+

Active Radial Multiswitch with 8 IF Inputs + 1 TERR and 24 Outputs

What technical specifications does the Terra MR924L Multiswitch have?

  • Number of entries: 9
  • Number of outputs: 24
  • Frequency range:
    • SAT: 950-2400 MHz
    • TV: 47-862 MHz
  • SAT gain: 3 ... 8 dB
  • TERR gain (active):
    • Output 1-8: -1 ... 3 dB
    • Output 9-16: -2 ... 1 dB
    • Output 17-24: -3 ... 0 dB
  • TERR loss (passive):
    • Output 1-8: 29 dB
    • Output 9-16: 30 dB
    • Output 17-24: 31 dB
  • Maximum output level for SAT IF (IMD3 = 35dB): 93 dBuV
  • Maximum output level for terrestrial TV (DIN45004B):
    • Output 1-8: 91 dB
    • Output 9-16: 88 dB
    • Output 17-24: 86 dB
  • Isolation between SAT inputs:> 25 dB
  • Isolation between outputs:> 25 dB
  • DC voltages at the inputs: H/Lo, H/Hi - 18V; V/Lo, V/Hi - 14V; Terr. TV - 12V
  • Current consumption (from receiver input): <60 mA
  • Control signals: 14/18V, 0/22kHz, Tone Burst or DiSEqC 2.0
  • Power consumption: 230V ~ 50/60Hz 4W
  • Operating temperature range: -20 ºC ~ +50 ºC
More Information
EAN 8430549035546
Hight 0.000
Length 0.000
Width 0.000
System SAT SAT Multiswitch
MANUFACTURER SERIE SAT Autónomo
Color Gray
Type Final
# Input satellites 8
# Terrestrial inputs 1
# Inputs 9
#User outputs 24
Gain (dB) 8
Loos (dB) 30
Power Embedded
LNB type Quattro
Product Brand Tecatel
