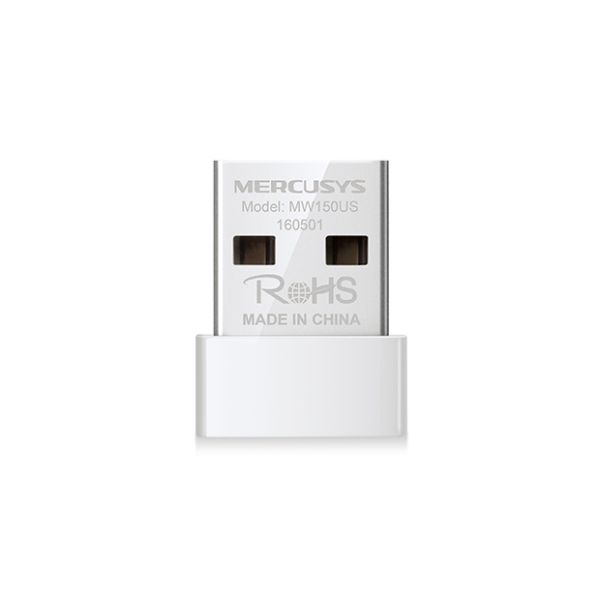

Miniature USB adapter for WiFi 2.4GHz 150Mbps wireless connection on PC or Laptop with Windows 10/8.1/8/7/XP (32/64bit) system.
This ultra-compact design adapter is ideal for use inside or outside the home. It can reach speeds of up to 150Mbps, enough for smooth web browsing, email, chat, and stable internet calls.
| Reception Sensitivity |
• 130M: -65dBm@10% PER • 11M: -85dBm@8% PER |
|---|---|
| System Requirements |
Windows 10/8.1/8/7/XP (32/64bit) |
| Dimensions (W X D X H) | 0.74 × 0.58 × 0.27 in. (18.9 × 14.8 × 6.85 mm) |
| Antenna Type | Internal |
| Signal Rate |
11n: Up to 150Mbps (Dynamic) 11g: Up to 54Mbps (Dynamic) 11b: Up to 11Mbps (Dynamic) |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.400 - 2.4835GHz |
| Interfaces | USB 2.0 |
| Certifications | CE, ROHS |
| Package Contents |
N150 Wireless Nano USB Adapter MW150US Quick installation guide Resource CD |
| Environment |
Operating temperature: 0⁰C ~40⁰C (32⁰F ~104⁰F) Storage temperature: -40⁰C~70⁰C (-40⁰F~158⁰F) Operating humidity: 10%~ 90% non-condensing Storage humidity: 5%~90% non-condensing |
| Transmission Power | <20dBm |
| Wireless Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| EAN | 6957939000325 |
|---|---|
| Hight | 0.150 |
| Length | 0.030 |
| Width | 0.100 |
| REDES - System | WiFi |
| REDES - SERIE | USB |
| Color | White |
| Network Equipment | WIFI Antenna |
| PoE | No |
| Product Brand | Mercusys |
| File | Label | Size | Download |
|---|---|---|---|
 | Ficha técnica del Nano Adaptador USB WiFi 150Mbps Mercusys MW150US | 473.5 KB | Download |
