Nevoswitch 17 x 17 x 8 de planta "F" Terminal/Cascada
Nevoswitch 17 inputs x 17 outputs x 8 of plant "F" Terminal/Cascade
Each nevoswitch can be configured as a terminal or cascade via a switch. It has a low consumption mode (ECO) that adjusts the electrical consumption of the installation to the number of connected users. Its zamak chassis makes it immune to radiation.

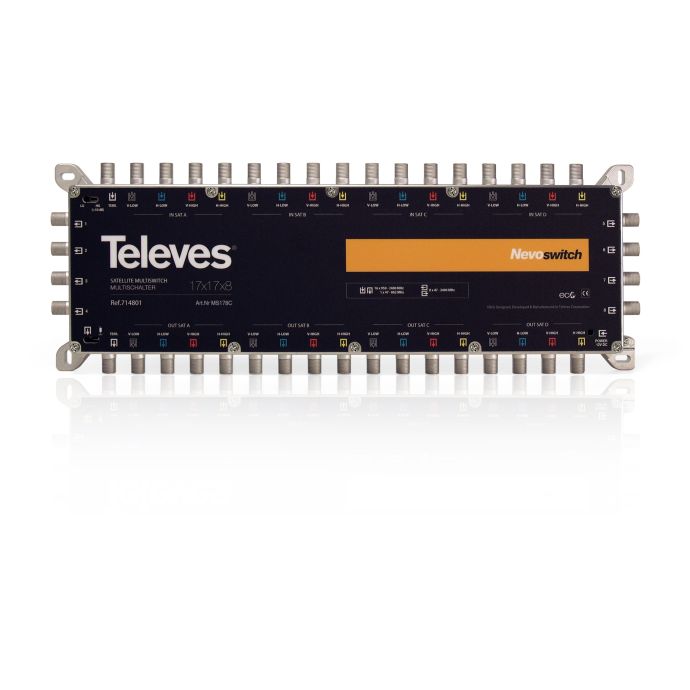

Nevoswitch 17 inputs x 17 outputs x 8 floors "F" Terminal/Cascade. Ref: 714801. This is a configurable element to better adapt the signal. Thanks to its small size and its design it is easy to handle.
12 dB potentiometer on each output to enhance the level individually. It has a switch to feed terrestrial previous or the passage of current.
Made of zamak, it is small in size and compact. It has color identification both at the input and at the output.
The multiswitch has an ECO mode to reduce consumption, as well as a switch to change its use between cascade and star.
The power supply can be done autonomously through the satellite receiver, so no power supply is necessary, or with the power supply Ref. 732101 (Power Supply 12V-0.8A), which is sold separately.
