Nevoswitch 9 inputs x 9 outputs x 24 for floors "F" Terminal/Cascade

Name: Nevoswitch 9 inputs x 9 outputs x 24 for floors "F" Terminal/Cascade
Brand: Televes
SKU: TEL714604
Price: 600.91 EUR
Availability: InStock

SKU

TEL714604

Brands: Televes

€600.91 Tax included

Availability: On request

Delivery: 1 to 7 days

Be the first to review this product

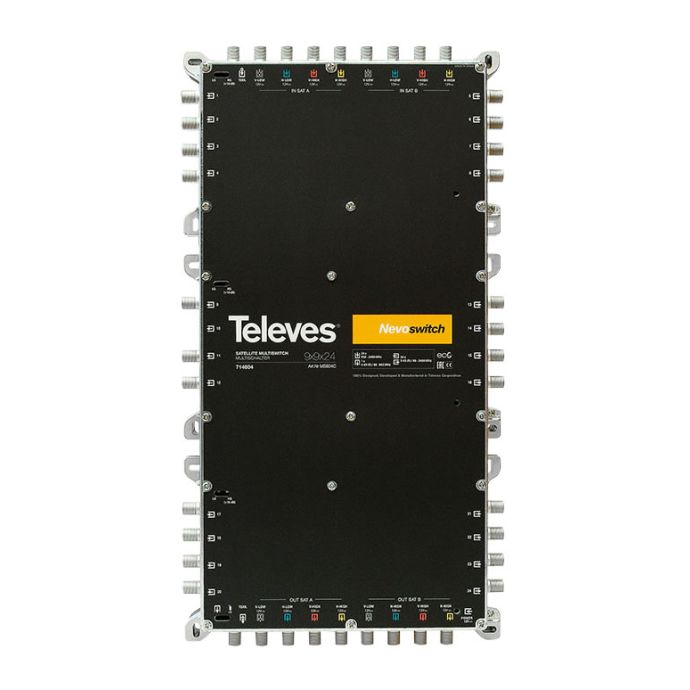

Nevoswitch 9x9x24 F Terminal/Cascade. Ref. 714604 from Televes.

New range of 9-input switchers. You have the following power options:

Through the SAT lines (12VDC)
Through the Power DC jack (12V)

The 12 Vdc power supply path is towards the SAT inputs/outputs, for the LNB power supply or other chained elements (cascade).

In addition, each user outlet must be powered by applying between 12 and 18V through its connector (with a receiver).

This range incorporates the ECO system by which the consumption of the installation is reduced as the number of connected users decreases.

The power supply can be done autonomously through the satellite receiver, so no power supply is necessary, or with the power supply Ref. 732101 (Power Supply 12V-0.8A), which is sold separately.

Details

Technical Characteristics of the Nevoswitch 9 x 9 x 24 "F" Terminal/Cascade. Ref. 714604 from Televes

Stands out for:

Zamak chassis that makes them immune to radiation.
Low consumption ECO mode.
Remote power supply through inputs and outputs.
Scalable system for star and cascade topologies. IF gain expandable +10dB for each group of 8 users.

Main features:

Multiple power options (Jack, VL line, terrestrial input or output and user connectors)
Adjustable gain and equalization.
Independent amplification of each line (8 satellite + 1 terrestrial).
Compact design.
Configurable cascade/star.

Type			9x9x24
Frequency range	MHz	SAT	950 ... 2200 / 2400
		RF	88 ... 862
		RET	5 ... 65
Input level	dBμV	SAT	112
		RF	90
Through losses	dB	SAT	6 ... 11 / 15
		RF	6
		RET	9
Tap losses 1..8 / 9..16 / 17..24 / 25..32	dB	SAT(1)	0/4/8/-
		RF	4/6/8/-
		RET	34/37/40/-
Isolation	dB	H/V	>30
		Users	>25
DCPass			In-Out / Out-In
Powering	Vdc	PSU Trunk lines	12
		User output (STB)	12-18
Max. total consump.	mA	PSU Low Gain(2)	130
		PSU High Gain(2)	265
		User Output (STB)	35
Protection level	IP		20
Temp. range	ºC		–5...+45

More Information

More Information
EAN	8424450173107
Hight	0.216
Length	0.041
Width	0.405
System SAT	SAT Multiswitch
MANUFACTURER SERIE SAT	Nevoswitch
Type	Cascading, Final
# Input satellites	8
# Terrestrial inputs	1
# Inputs	9
#User outputs	24
LNB type	Quattro
Product Brand	Televes
