Nice 220V 1S FAN2 Smart Recessed Temperature Sensor

SKU

NICMH5FAN2

Brands: Nice

Availability: On request

Delivery: 1 to 7 days

€140.76 Tax included

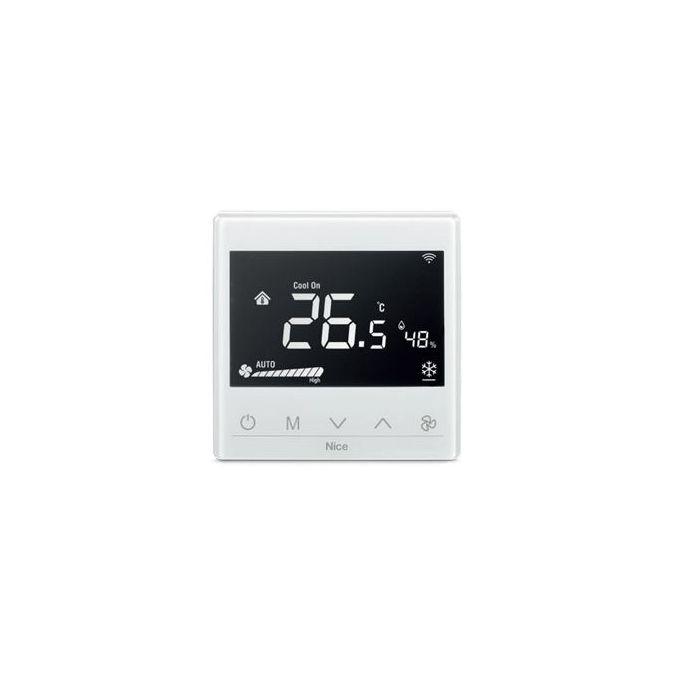

Nice 220V 1S FAN2 Smart Recessed Temperature Sensor

This device is a thermostat to control the temperature and ventilation of your fan or heater. It has 3 operating speeds for 2 tubes. Ideal for managing and controlling zoned climate systems such as underfloor heating.

It is ideal for your home, an office, or a vacation home. You can automatically regulate the fan speed. It works in cold-heat mode. Its touch panel has capacitive buttons, with a 7” tempered glass panel. Precise temperature calibration.

Its installation is very simple. It has 1 relay output for a 2-tube-1-circuit system. It works with Nice Gateway systems (Yubii Home Pro and Yubii Home) but is also compatible with Fibaro gateways (Home Center 3 and Home Center 3 Lite).

Details

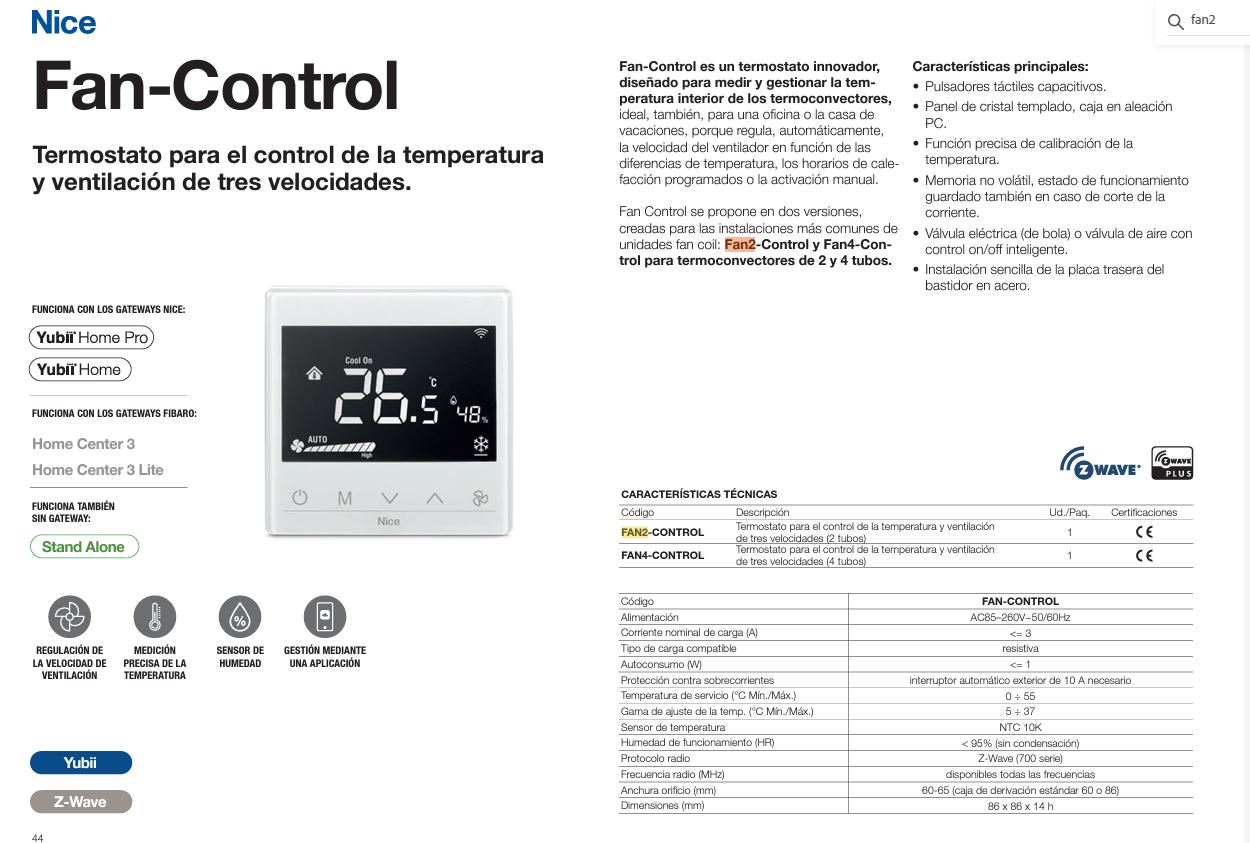

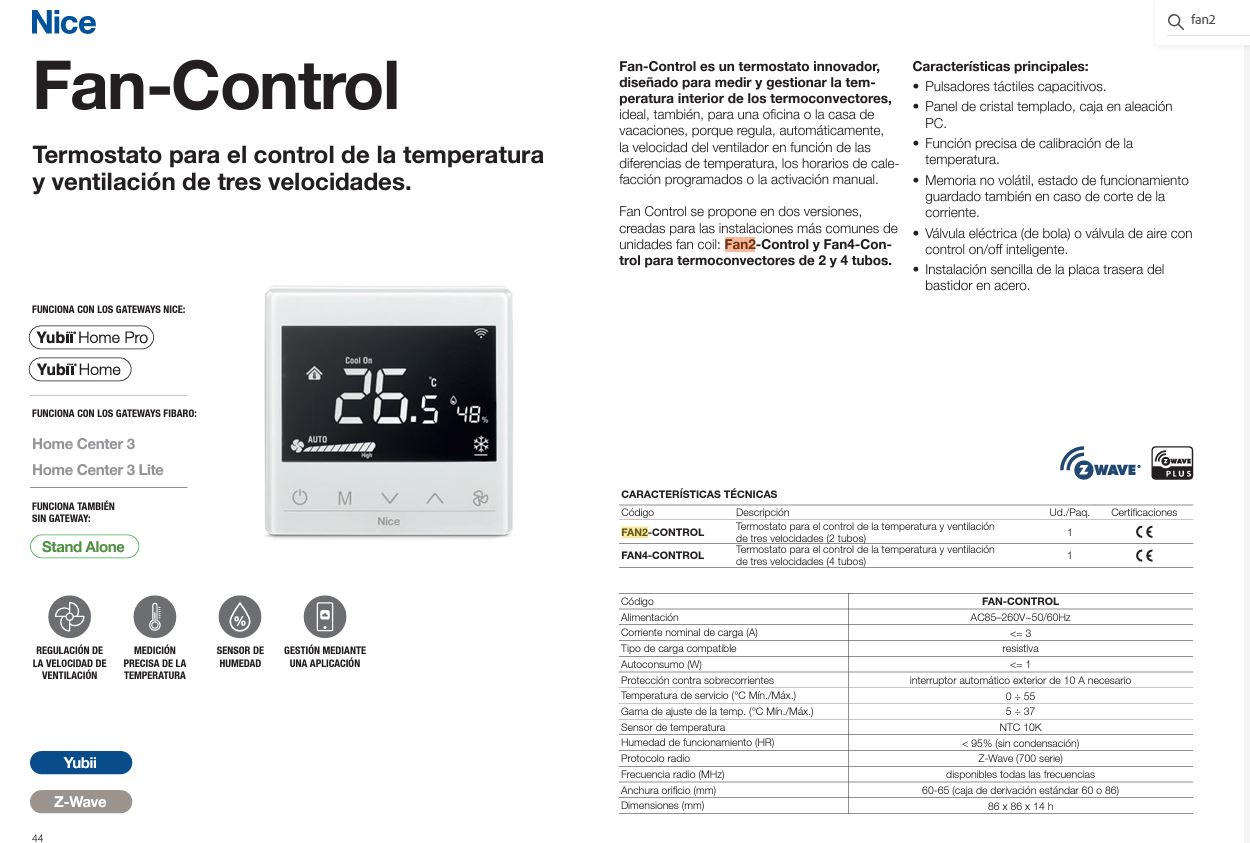

Technical Specifications of Nice 220V 1S FAN2 Smart Recessed Temperature Sensor

Code	FAN-CONTROL
Power supply	AC85–260V~50/60Hz
Nominal charging current (A)	Rated load current (A)
Compatible charging type	resistive
Self-consumption (W)	<= 1
Overcurrent protection	Overcurrent protection
Working temperature (°C Min./Max.)	0 ÷ 35
Temperature adjustment range (°C Min./Max.)	5 ÷ 37
Temperature sensor	NTC 10K
Operating humidity (RH)	Operating humidity (RH)
Radio protocol	Z-Wave (700 series)
Radio frequency (MHz)	all frequencies available
Hole width (mm)	60-65 (standard junction box 60 or 86)
Dimensions (mm)	86 x 86 x 14
