Nice Wide M 24Vdc Barrier for 4m Masts

Name: Nice Wide M 24Vdc Barrier for 4m Masts
Brand: Nice
SKU: NICWIDEM4M
Price: 1410.13 EUR
Availability: InStock

SKU

NICWIDEM4M

Brands: Nice

Availability: On request

Delivery: 1 to 7 days

€1,410.13 Tax included

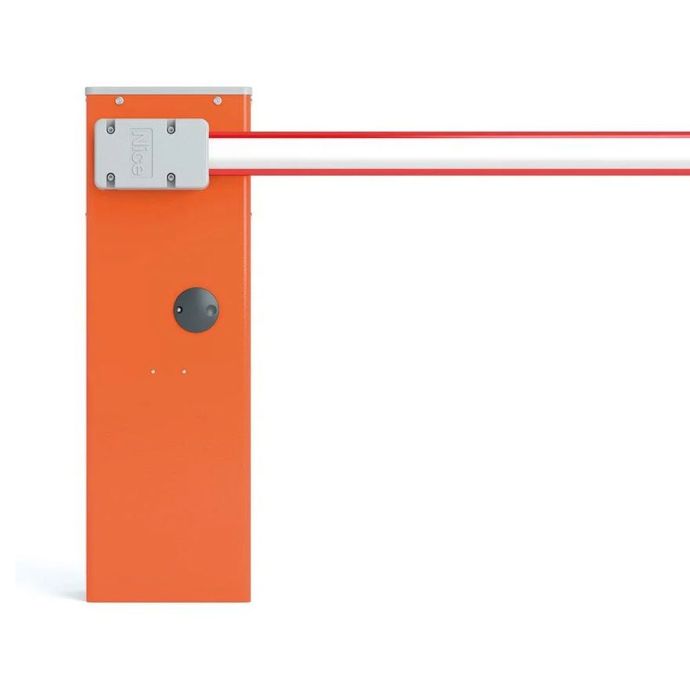

Nice Wide 24Vdc Barrier for 4m Masts

This device is a vehicle barrier that allows access to restricted areas. Operated by an electromechanical actuator, it has 5 metres of barrier formed by a modular composition of masts by means of aluminium expansion joint. The mast has a high resistance to wind gusts.

The minimum opening time of is 3 seconds. Lbarrier has encoder motion control and is able to detect obstacles.

It is able to control the movement of two opposing cars in intelligent mode thanks to the master/slave function.

Details

Technical Specifications of the Nice Wide 24Vdc 4m Pole Barrier

Electromechanical 5-metre barrier actuator Nice Motor
Minimum opening time of 3 seconds
Up to 450 cycles / hour
Control unit integrated in the upper part of the barrier body
Modular composition of the masts by means of aluminium expansion joints
Possibility of controlling the movement of two opposing drives in intelligent mode thanks to master/slave function
Electronically adjustable speed from 3 to 6 seconds
Elliptical mast with high resistance to wind gusts
Left or right hand mast mounting
Heavy duty balancing springs, up to 1 000 000 movements
Side release with metal key
Optional flashing light or traffic light, can be integrated into the housing
Movement control by encoder and electromechanical limit switches
Obstacle detection and monitoring of motor absorption during operator movement
Automatic diagnostics of malfunctions during operation
Predisposed for connection of the latest generation of optical and resistive sensors (with 8.2 kOhm resistor)
Operation in case of power failure by means of optional batteries
Rated voltage 230V AC, 50/60Hz
Maximum power rating of 110W
Operating temperature -20°C ~ +55°C
Degree of protection IP54
Dimensions: 400 x 299 x 1215 mm
Weight: 80 kg
