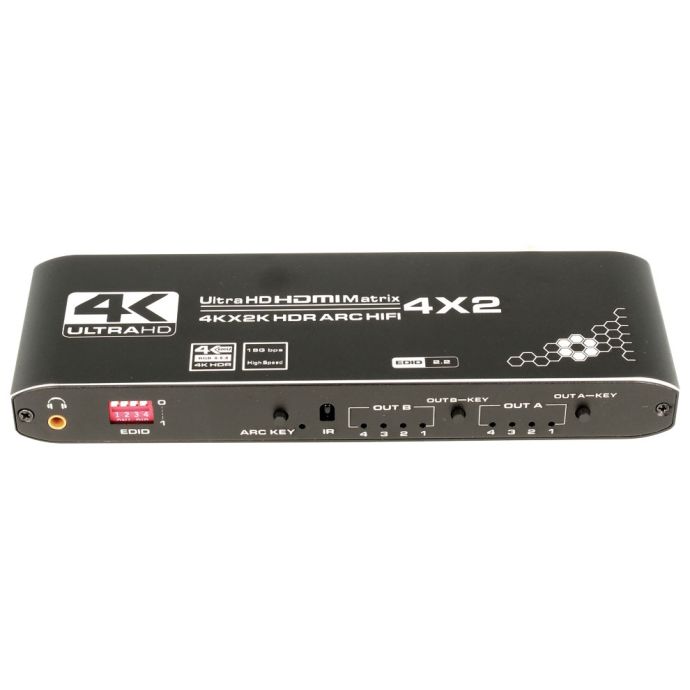

Nimo HDMI Matrix Switcher 2.0b 4K 4 Inputs 2 Outputs

SKU
NIMACTVH004
Brands: NIMO
€49.45 Tax included
NIMO
Availability: On request
1 to 7 days

HDMI Matrix 2.0b Switch

This HDMI matrix switch allows you to connect multiple HDMI video sources and route them to multiple displays or projectors independently. Unlike a simple switch, a matrix allows for greater flexibility.

It has 4 HDMI inputs to connect up to 4 source devices and 2 HDMI outputs to connect up to 2 displays or projectors.

The functionality of the Matrix is ​​that it allows you to route any source to any display independently. This means you can display a different source on each display, or the same source on both.

It supports resolutions up to 4K, ensuring crisp, detailed image quality.



Technical Specifications HDMI Matrix 2.0b Switcher

Detailed Technical Data:

  • HDMI Version:
    HDMI 2.0b
  • HDMI Bandwidth:
    Up to 18 Gbps
  • Supported Video Resolutions:
    Up to 4K@60Hz (4:4:4)
    1080p, 1080i, 720p, 576p, 576i, 480p, 480i
  • Color Formats:
    RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
  • Supported Audio Formats:
    LPCM, Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS
  • HDCP:
    HDCP 2.2 and earlier versions
  • Inputs:
    4 x HDMI Type A (female)
  • Outputs:
    2 x HDMI Type A (female)
  • Control:
    Remote Control IR
  • Power:
    DC 5V/2A power adapter (varies by model)
  • Operating Temperature:
    0°C to 40°C
  • Storage Temperature:
    -20°C to 60°C
  • Relative Humidity:
  • 20% to 90% (non-condensing)
  • Housing Material:
    Typically Aluminum Alloy.
More Information
EAN8436300471172
Hight0.000
Length0.000
Width0.000
CTI - SystemHDMI
CTI - SerieFemale Connect.
ColorBlack
TypeAdaptor
Form factorStraight
Product BrandNIMO
Write Your Own Review
You're reviewing:Nimo HDMI Matrix Switcher 2.0b 4K 4 Inputs 2 Outputs
Your Rating
File Label Size Download
pdf Manual de Usuario Conmutador de HDMI Matrix 2.0b 237.3 KB Download
