NVR Recorder 16 IP Channels 8Mpx Dect. Hikvision movement

SKU
DS-7616NI-Q2
Brands: Hikvision
€180.85 Tax included
Availability: On request
1 to 7 days

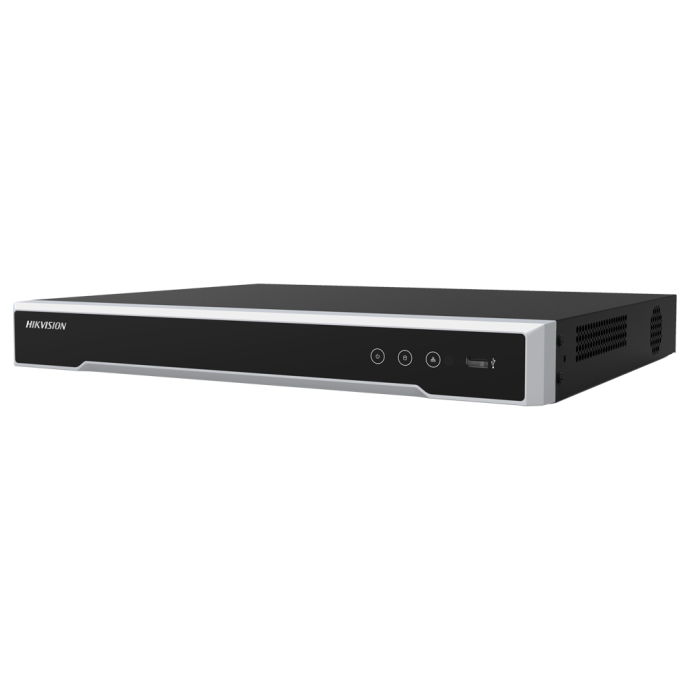

NVR Recorder 16 IP Channels 8Mpx Motion Detection from Hikvision

Hikvision 16-channel IP recorder from the PRO range. It is a high quality recorder to connect IP video surveillance cameras.

It has RCA audio output, and simultaneous 4K HDMI and VGA video outputs. In addition, it has 2 USB ports and an RJ45 10/100Mbps ethernet port.

The recorder allows the following video compression formats: H.265+ / H.265 / H.264+ / H.264. It has space for 2 3.5” HDD hard drives of up to 8TB each (not included).

It is capable of recognizing humans and vehicles, thanks to its motion detection 2.0, in 4 channels of the 16 available.

Package content:

*Hikvision NVR Recorder
*Mouse
*Ethernet cable
*Manual
*Wired to connect hard drive
*Feeder

-
+

Technical Specifications of the Hikvision NVR Recorder 16 IP Channels 8Mpx Motion Detection



Brand Hikvision
Range PRO
Inputs for IP cameras LAN port up to 16 channels
Power over Ethernet No
IP compatible cameras HIKVISION (native protocol), ONVIF
Bidirectional audio 1 RCA output
Video outputs 1xHDMI 4K, 1xVGA simultaneous
Video compression format H.265+ / H.265 / H.264+ / H.264
Display resolution HDMI: 4096x2160, 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720
VGA: 1920x1080, 1280x1024, 1280x720
Total bandwidth 160 Mbps downstream / 80 Mbps upstream
Stream Type Video / Video + Audio
Main Stream recording 8MP /6MP /5MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Decoding capacity 1CH@8MPx, 3CH@4MP, 6CH@1080p
Motion Detection Motion detection 2.0 with human and vehicle classification applied in motion detection.
Available up to 4 channels.
* Motion detection and Acusense cannot be enabled at the same time on the same device.
Simultaneous multifunction Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms No
Recording method Manual, programmed, motion detection
External Backup USB memory / HDD USB / CD-RW USB / DVR-RW USB
Remote access Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central
Remote connections 32
Internal memory 2 HDD SATA 3.5" of up to 8 TB each (not included)
Communication 2 x USB 2.0 / 1 x RJ45 10/100M (Ethernet)
Power DC 12 V / 3.33 A, ≤ 15 W (without HDD)
Operating temperature -10ºC ~ 55ºC (10%-90% Humidity)
Dimensions / Weight 52 (H) x 385 (W) x 315 (D) mm / 1.8 Kg (without HDD)
More Information
Hight 0.000
Length 0.000
Width 0.000
System IP
SERIE NVR
Included Power supply
Event notifier No
No. CCTV Recorder Inputs 16 IP
Audio in ports 1
Product Brand Hikvision
