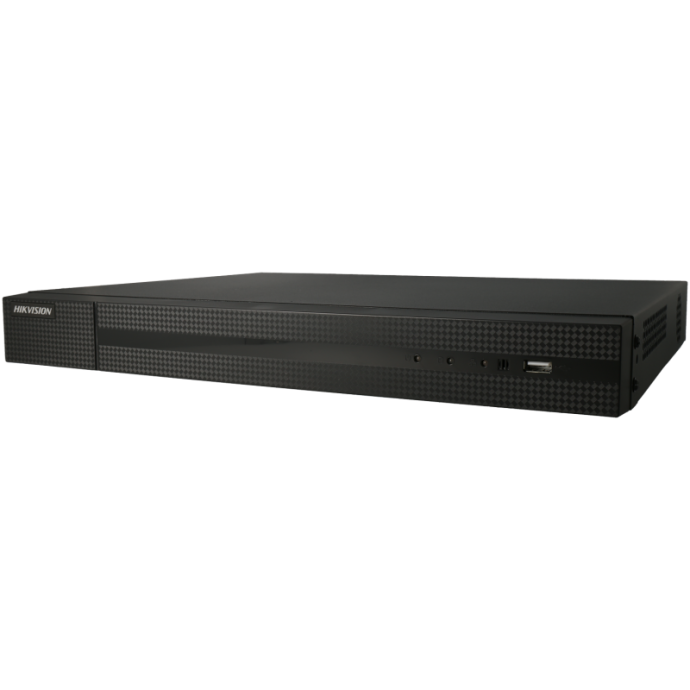

NVR Recorder 16 IP Channels 8Mpx POE from Hikvision

SKU

HWN-5216MH-16P

Brands: Hikvision

Availability: On request

Delivery: 1 to 7 days

€350.66 Tax included

16 Channel 8Mpx POE IP Recorder

16-channel NVR recorder with a maximum resolution of 8Mpx in which you can connect CCTV security IP cameras. The recorder supports 160Mpbs bandwidth and H.265+/H.265/H.264+/H.264 video compression.

It has 4K HDMI and VGA outputs. Its 16 ports are POE, it has space for 2 3.5” SATA hard drives of up to 6TB and is ONVIF compatible.

Package content:

*Hikvision recorder

*Mouse

*Power cord

*CD with manual and software

Details

Technical Specifications of the 16-Channel 8Mpx POE IP Recorder

Brand	Hikvision
Range	HiWatch Series
Inputs for IP cameras	LAN port up to 16 channels
Power over Ethernet	16 port PoE Switch IEEE802.3af/at (max. 75 W)
IP compatible cameras	HIKVISION, ONVIF
Bidirectional audio	1 input / 1 RCA output
Video outputs	1 HDMI 4K, 1 VGA
Video compression format	H.265+ / H.265 / H.264+ / H.264
Display resolution	3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768
Decoding capacity	2CH @ 8 MP (25fps) / 4CH @ 4MP (30fps) / 8CH @ 1080p (30fps)
Total bandwidth	160 Mbps downstream / 160 Mbps upstream
Main Stream recording	8MP/6MP/5MP/4MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Simultaneous multifunction	Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms	4 inputs / 1 relay
Recording method	Manual, programmed, motion detection, alarm
External Backup	USB memory / HDD USB / CD-RW USB / DVR-RW USB
Internal memory	2 SATA HDD 3.5" of up to 6 TB (not included)
Communication	2 x USB 2.0 / 1 x RJ45 10/100/1000 (Ethernet)
Remote access	Web Browser, Smartphone App IVMS 4500 and PC Software IVMS 4200
Power	100-240 VAC, 50/60 Hz
Dimensions / Weight	52 (H) x 385 (W) x 315 (D) mm / 3.0 Kg (without HDD)
