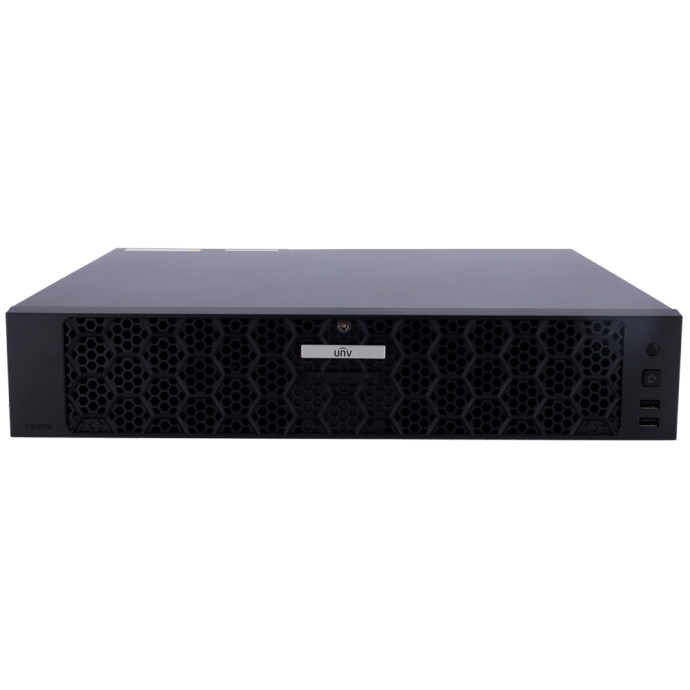

NVR Recorder 64 Channels 32Mpx from Uniview

SKU
UV-NVR508-64E-R
Brands: Uniview
Free shipping
(Iberian Peninsula)
Availability: On request
1 to 7 days

Uniview UV-NVR508-64E-R 32Mpx Prime Range IP Camera Recorder

This recorder stands out for its advanced functions, its compatibility with different technologies and its features designed for projects. It adapts to various security needs. It belongs to the Uniview Prime range,offering high quality, ideal for customers looking for customizable surveillance solutions and varied projects.

It provides a great solution providing an excellent quality of medium-high range, such as in the case of shopping centers, hospitals, parking lots, etc.

It has 12 advanced functions and a great multitude of applications. Functions such as:

  • Smart Intrusion Prevention (SIP). Monitors network traffic for threats, acting automatically to block them by alerting the security team, or removing malicious content.
  • Heat map. It is a graphical representation of data where the values are represented by colors, to locate visible elements.
  • License plate recognition Detects and recognizes vehicle license plates.
  • People counting. As the name suggests, it is able to distinguish people in the image and do people counting.
  • Reconocimiento facial. Capaz de reconocer rostros.
  • Ultra Motion Detection (UMD). Algorithm that is able to detect unwanted movements, applying human/vehicle detection analytics in the detection itself.
  • Video metadata. Accurately describing the details that matter in a scene, such as where those details are located, what they are and how they move.
  • Dual lens cameras.
  • Dual PTZ lens.
  • Omni view.
  • Fisheye dewarping. Technology used in fisheye cameras to view the image at different angles as a conventional camera would.
  • The POS is considered as metadata (just like a line crossing or area intrusion, such as a VCA).

Supports 8 3.5" SATA hard drives up to 16TB. In addition, with hot swapping mode, which will allow us to place the hard drives in much less time, more conveniently and quickly, just by opening the front panel of the recorder. Supports 64 channels with resolutions up to 32Mpx and a bandwidth of 384Mbps.

It has 16 alarm inputs and 10 outputs and a redundant power supply that guarantees its reliability. You can monitor different views with its 2 HDMI + 2 VGA + 2 audio outputs.

This recorder is compatible with most of the cameras on the market, but you will get the most out of all its functions with these: colorhunter cameras, dual lens and PTZ cameras, thermal cameras, cameras up to 16Mpx, fisheye cameras.

Technical Specifications of the Uniview UV-NVR508-64E-R 32Mpx Prime Range IP Camera Recorder



Brand Uniview
Spectrum Prime
Compatible IP cameras UNIVIEW, ONVIF
Two-way audio 1 input / 1 RCA output
video outputs 2 HDMI 4K, 2 VGA
Video compression format Ultra H.265 / H.265 / H.264
Network interface 2 RJ-45 10M/100M/1000M
Display resolution 3840x2160, 1920x1080, 1600x1200 1280x1024, 1280x720, 1024x768
Total bandwidth 384 Mbps in / 384 Mbps out
Main Stream Recording 32Mpx / 16Mpx / 12Mpx / 8Mpx / 6Mpx / 5Mpx / 4Mpx / 3Mpx / 1080p / 720p / D1 / 2CIF / CIF
VCA detection by camera Intrusion Detection, Cross Line Detection, Entry Area, Exit Area, Blur Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, UMD (Ultra Motion Detection)
VCA Search Motor vehicle search, non-motor vehicle search, human body search, general search, image search,
  people counting report
Smart Features per camera 16 channels
Vehicle Image Library Up to 5 vehicle image libraries, with up to 25,000 images in total
Alarms 16 Inputs / 10 Outputs
Recording method Manual, scheduled, motion detection
External backup USB memory / USB HDD
Internal storage 8 SATA 3.5" HDDs up to 16 TB (not included)
Communication 2 x USB 2.0 / 2 x RJ45 (Ethernet)
Remote access Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
Feeding 100~240V AC / 50W
Dimensions / Weight 442mm × 448mm × 93mm / 6Kg
More Information
Hight 0.000
Length 0.000
Width 0.000
System IP
SERIE 32Mpx
Included Mouse, Power supply
Event notifier No
No. CCTV Recorder Inputs 32 IP
Audio in ports 1
Product Brand Uniview
