OMADA Gigabit VPN Router with Load Balancing R605

Name: OMADA Gigabit VPN Router with Load Balancing R605
Brand: Tplink
SKU: Tl-ER605
Price: 72.35 EUR
Availability: InStock

SKU

Tl-ER605

Brands: Tplink

€72.35 Tax included

Availability: On request

Delivery: 1 to 7 days

Be the first to review this product

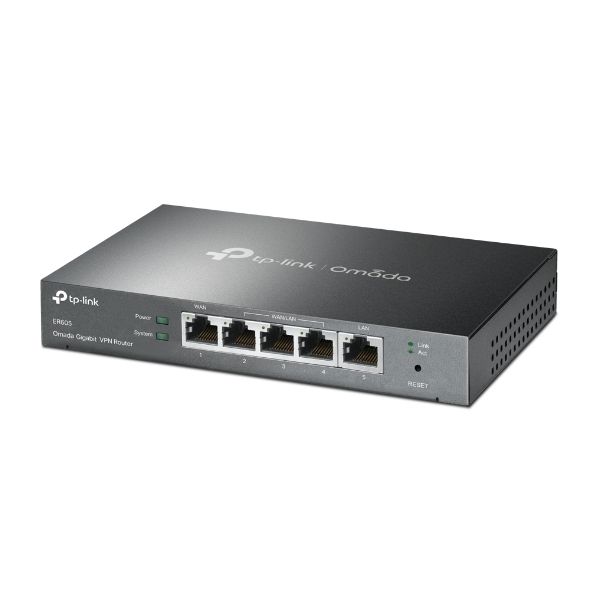

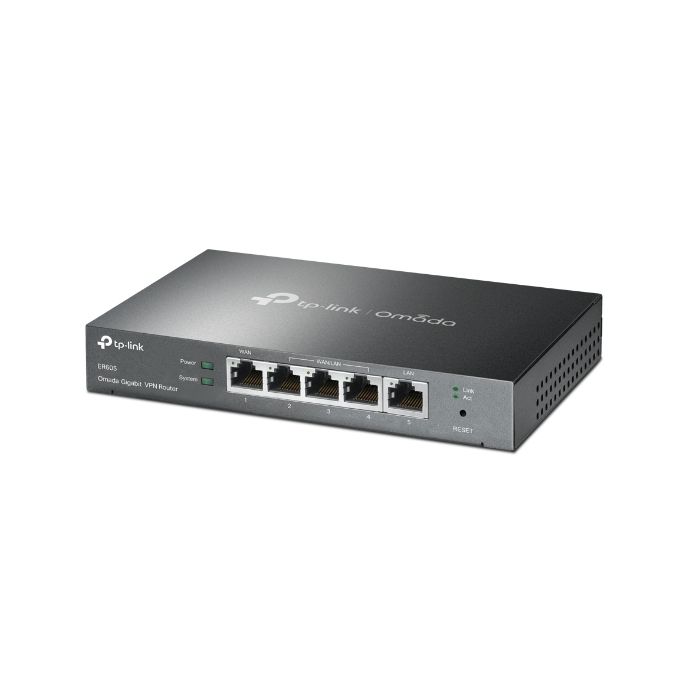

OMADA Gigabit VPN Router with Load Balancing

VPN router integrated in OMADA SDN for centralized management in the cloud. Easy access to the cloud. With the Omada application you can manage the system.

It has 5 Gigabit ports connected by high speed cable (up to 1000 Mbps). LED status indicator on each port. It has 4 WAN ports, 1 gigabit WAN port and 3 LAN/WAN ports.

The router has load balancing, which makes the use of multi-line bandwidth more efficient. In addition, your VPN allows you up to 20 highly secure IPsec connections, 16 OpenVPN connections, 16 L2TP and 16 PPTP VPN connections.

Gross weight: 675g
Product measurements (width x depth x height): 15.8 x 10.1 x 2.5 cm

Details

Technical Specifications of OMADA Gigabit VPN Router with Load Balancing

HARDWARE FEATURES
Standards and Protocols	• IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface	• 1 Fixed Gigabit WAN port • 1 Fixed Gigabit LAN port • 3 Interchangeable Gigabit WAN/LAN ports
Network Media	• 10BASE-T: category UTP cable 3, 4, 5 (máx. 100 m) EIA / TIA-568 STP 100 Ω (máx.100 m) • 100BASE-TX: category UTP cable 5, 5e (máx. 100 m) EIA / TIA-568 STP 100 Ω (máx.100 m) • 1000BASE-T:category UTP cable 5, 5e, 6 (máx. 100 m)
Buttons	Reset button
Power supply	External DC adapter 9V / 0.85A
Flash	SPI 16MB
DRAM	128 MB
LED	PWR, SYS, WAN, LAN
Dimensions	6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)

PERFORMANCE
Concurrent Sessions	25,000
Performance VPN IPsec	41.5 Mbps

BASIC FUNCTIONS
WAN connection type	• IP static / dynamic • PPPoE • PPTP • L2TP
Cloned MAC	Modify the address MAC WAN / LAN ^†
DHCP	•DHCP Server / Client •DHCP address reservation •Multi-network DHCP * • Interfaces multi-IP *
IPv6	Yes
VLAN	802.1Q VLAN
IPTV	Proxy IGMP v2 / v3

ADVANCED FUNCTIONS
ACL	IP / Port / Protocol / Domain Name Filtering
Advanced routing	• Static routing • Policy routing
Bandwidth Control	• Bandwidth control based on IP / port • Warranty and limited bandwidth
Load balancing	• Intelligent load balancing • Optimized routing for applications • Link backup (synchronization, failover) • Online detection
NAT	• One-to-one NAT§ • Multi-network NAT • Virtual server • Activation of ports § • NAT-DMZ • FTP / H.323 / SIP / IPSec / PPTP ALG, UPnP
Security	• SPI firewalls • VPN Passthrough • FTP / H.323 / PPTP / SIP / IPsec ALG • DoS Defense, Ping of Death • Local Management
Session Limit	IP-based session limit

VPN
VPN IPsec	• 20 IPsec VPN tunnels • LAN to LAN, client to LAN • Main and aggressive trading mode • DES, 3DES, AES128, AES192, AES256 encryption algorithm • IKEv1 / v2 * • MD5, SHA1 authentication algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) * These functions require the use of a hardware controller, software controller or Omada cloud-based controller
VPN PPTP	• PPTP VPN Server • 10 PPTP VPN clients • 16 tunnels • PPTP with MPPE encryption
VPN L2TP	• L2TP VPN Server • 10 L2TP VPN clients • 16 tunnels • L2TP over IPSec
OpenVPN	• OpenVPN server * • 10 OpenVPN clients * • 16 OpenVPN tunnels *

SECURITY
Filtered out	WEB group filtering § URL filtering Web security §
ARP Inspection	• Sending GARP packages § • ARP scan § • IP-MAC link §
Defense Against Attacks	• Defense against TCP / UDP / ICMP floods • Block TCP scan (Stealth FIN / Xmas / Null) • Block WAN ping
Access Control	Source/destination IP based access control

AUTHENTICATION
Web Authentication	• No authentication • Simple password * • Hotspot （Local User / Coupon * / SMS * / Radio ） • External radius cutter • External portal server • Facebook*

MANAGEMENT
Omada App	Yes
Centralized Management	• Omada cloud-based controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada software driver
Cloud Access	Yes (via OC300, OC200, Omada Cloud Based Controller or Omada Software Controller)
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance	• Time setting • Diagnosis • Firmware update • Factory defaults / reset • Restore Backup • System log • Remote management • Statistics • Driver Settings • SNMP
Management Features	• Automatic device discovery • Smart network monitoring • Abnormal event warnings • Unified configuration • Reboot program • Captive portal configuration • ZTP (zero-touch provisioning)**

OTHERS
Certifications	CE, FCC, RoHS
Package content	• Gigabit VPN Router ER605 • Power adapter • Ethernet cable RJ45 • Quick Installation Guide
System Requirements	Microsoft® Windows® 10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
Environmental factors	• Operating temperature: 0–40 ℃ (32–104 ℉); • Storage temperature: -40–70 ℃ (-40–158 ℉) • Operating humidity: 10 to 90% relative humidity non-condensing • Storage humidity: 5–90% relative humidity non-condensing

More Information

More Information
EAN	6935364089597
Hight	0.200
Length	0.100
Width	0.300
RED - System	Omada
RED - SERIE	Gibabit Ethernet
Color	Gray
Network Equipment	Router
Ports	5
Data Speed	Gigabit (10/100/1000Mbps)
PoE	No
Product Brand	Tplink
