Omada WiFi6 Dual Band Outdoor Access Point Managed in the Cloud EAP610OUT AX1800

Name: Omada WiFi6 Dual Band Outdoor Access Point Managed in the Cloud EAP610OUT AX1800
Brand: Tplink
SKU: TL-EAP610OUT
Price: 210.82 EUR
Availability: InStock

SKU

TL-EAP610OUT

Brands: Tplink

€210.82 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

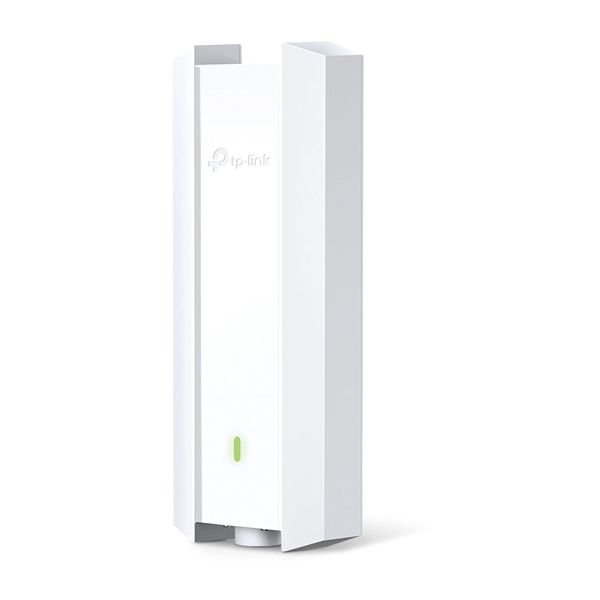

WiFi6 Outdoor Access Point EAP610OUT

This access point is used both indoors and outdoors. It works in soft double frequency, working at 2402Mbps in 5GHz and 574Mbps in 2.4GHz. Its power supply is flexible with a PoE+ or passive PoE switch.

This access point can be used in medium and large companies, to obtain WiFi outdoors, such as parks, terraces in hotels, swimming pools, amphitheatres, etc. It has WiFi6 with much faster speeds with less interference and greater capacity, since WiFi6 works at more than twice the speed of WiFi 5.

This access point comes equipped with professional antennas that include high-power amplifiers, vertically and horizontally polarized, which translates to high-range, solid and expansive coverage.

Its management is very simple thanks to Omada, allowing you to configure a wide variety of options, monitor the status of the network and manage clients from your mobile or a Tablet.

Details

Technical Specifications of the WiFi6 Access Point EAP610OUT

HARDWARE FEATURES
Interface	1 Gigabit Ethernet (RJ-45) port (802.3at PoE and Passive PoE compliant)
Buttons	Factory reset
Power supply	• 802.3at PoE • 48V / 0.5A Passive PoE (PoE adapter included)
Power Consumption	• UE: 12,5 W (802.3at PoE or passive PoE) • EE. UU.: 14,7 W (802.3at PoE or passive PoE)
Dimensions	• 280.4 × 106.5 × 56.8 mm (without antenna and mounting kit)
antennas	• 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi
Weatherproof Enclosure	IP67
Mounting	Pole / wall mount (kits included)
WIRELESS FEATURES
Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
Frequency	2.4 GHz, 5 GHz
Signal Rate	• 802.11ax: 8 Mbps a 1201 Mbps (MCS0-MCS11, NSS = 1 a 2 HE20 / 40/80) • 802.11ac: 6,5 Mbps a 867 Mbps (MCS0-MCS9, NSS = 1 a 2 VHT20 / 40/80) • 802.11n: de 6,5 Mbps a 300 Mbps (MCS0-MCS15, VHT 20/40) • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps • 802.11b: 1, 2, 5,5, 11 Mbps • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Potency of transmission	• CE: <20 dBm (2,4 GHz, EIRP), <30 dBm (5 GHz, EIRP) • FCC: <25 dBm (2,4 GHz), <25 dBm (5 GHz)
Wireless Features	• 1024-QAM • 4 times longer OFDM symbol • OFDMA • Multiple SSIDs (up to 16 SSIDs, 8 for each band) • Enable/disable wireless radio • Automatic channel assignment • Transmit power control (adjust transmit power to dBm) • QoS (WMM) • MU-MIMO • Omada Mesh • Seamless Roaming • Band Steering • Load Balancing • Airtime Fairness • Beamforming • Rate Capping • Reset Schedule • Wireless Schedule • Wireless statistics based on SSID / AP / Client
Wireless Security	• Captive portal authentication** • Access control • Wireless MAC address filtering • Wireless isolation between clients • SSID to VLAN mapping • Rogue access point detection • 802.1X support • WEP, WPA-Personal / Enterprise, WPA2 -Personal/Enterprise, WPA3-Personal/Enterprise
MANAGEMENT
Omada App	Yeah
Centralized Management	• Omada cloud-based controller • Omada hardware controller (OC300) • Omada hardware controller (OC200) • Omada software controller
Cloud Access	Yes (via OC300, OC200, Omada cloud-based controller or Omada software controller)
Email Alerts	Yeah
MAC Access Management Control	Yeah
SNMP	v1, v2c
Access to Local System Registry/Remote System Registry	Yeah
SSH	Yeah
Web-based management	Yeah
L3 management	Yeah
Multi-site management	Yeah
Management VLAN	Yeah
Others
Certifications	CE, FCC, RoHS
Package content	• EAP610-Outdoor access point • Passive PoE adapter • Power cable • Mounting kits • Waterproof kits • Waterproof antenna • Installation guide
Environmental factors	• Operating temperature: -30–70 ℃ (-22–158 ℉) • Storage temperature: -40–70 ℃ (-40–158 ℉) • Operating humidity: 10 to 90% RH non-condensing • Humidity Storage: 5–90% relative humidity, non-condensing

More Information

More Information
EAN	6935364010232
Hight	0.350
Length	0.080
Width	0.250
REDES - System	WIFI6
REDES - SERIE	Outdoor
Color	White
Network Equipment	Access Point
Ports	1
Data Speed	Gigabit (10/100/1000Mbps)
PoE	Yes
Product Brand	Tplink
