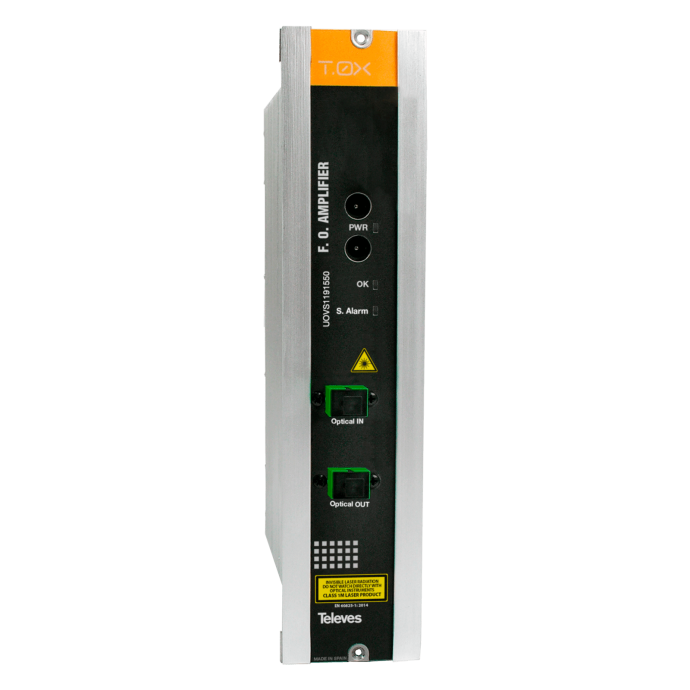

Optical Amplifier 1e/1s 1550nm 20dBm EDFA

Name: Optical Amplifier 1e/1s 1550nm 20dBm EDFA
Brand: Televes
SKU: TEL234220
Price: 3105.95 EUR
Availability: InStock

SKU

TEL234220

Brands: Televes

€3,105.95 Tax included

Availability: On request

Delivery: 1 to 7 days

Be the first to review this product

EDFA Optical Amplifier 1 output 20dBm Televes 234220

Module that amplifies the 1550nm optical signal for RF over fiber service (RF Overlay). This amplifier generates an optical power output of 20dBm, designed to cover long distances.

Its EDFA (Erbium doped fiber) technology offers high gain with low noise levels. The input range is -3 to 10dBm, it has 1 input and 1 output with SC/APC connectors.

Details

Televes 1 output optical amplifier module, based on EDFA technology, with 20dBm of power

What are the main characteristics of the Televes 234220 Optical Amplifier?

-3 dBm to +10 dBm input range
Status LED indicators
Optical amplification for the RF service over fibre (RF Overlay)
Suitable for long distances
SC/APC connectors

What technical specifications does the Televes 234220 Optical Amplifier have?

Optical bandwidth	nm	1550 ±15
Input optical power	dBm	-3 ... +10
Output optical power	dBm	20 ±0.8
Noise figure	dB	< 5
Return losses	dB	> 50
C/N	dB	> 53
CSO - CENELEC 42 CH	dBc	> 61
CTB - CENELEC 42 CH	dBc	> 61
Powering	V=	24 ±5%
Max. current consumpt	mA	300 @24V=
Optical connectors	Type	SC/APC
Operating temperature	ºC ºF	-5 ... +45 +23 ... +113
Protection index	IP	20
