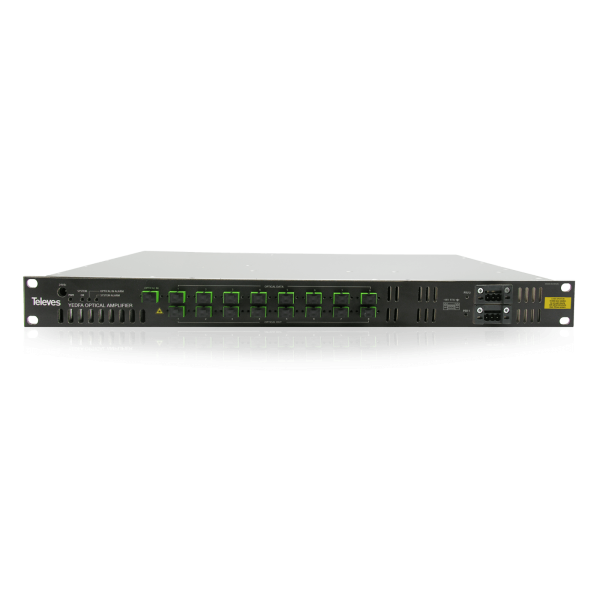

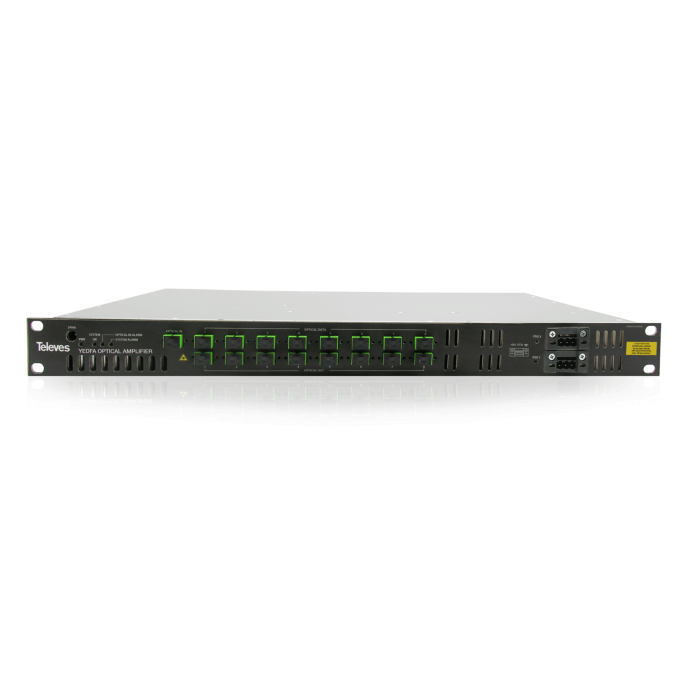

Optical Amplifier 20dBm YEDFA 19"

SKU
TEL769610
Brands: Televes
€9,909.90 Tax included
Free shipping
(Iberian Peninsula)
Availability: On request
1 to 7 days

Optical signal amplifier equipment up to 20dBm

With the Televes 769610 optical amplifier you can improve the fiber optic signal with up to 20dBm gain at 1550nm. This device has 8 SC/APC outputs for fiber and a standard width for installation in 19" racks, occupying only 1U of height.

The YEDFA amplifier includes an integrated dual power supply to provide power to an OLT (Optical Line Terminal). This equipment has been designed to mix the RF Overlay service with GPON.

-
+

YEDFA optical amplifactor of 20dBm with 8 fiber SC / APC connections to amplify the optical signal.

What main features does the 769610 Televes amplifier offer?

  • 20 dBm high-optical output power amplifier
  • Equipped with WDM for the multiplexing of RF Overlay with GPON signals
  • -10 dBm to +10 dBm input range
  • Status LED indicators
  • High-efficiency power supply
  • Hot swappable double power supply: subscriber service is not interrupted
  • -48 VDC per module
  • Application to include RF Overlay in GPON headends
  • Suitable for long distances
  • SC/APC connectors

What technical specifications does the 769610 Televes amplifier have?

OPTICAL INPUT
Video Overlay

Input optical power dBm -10...+10
Input connector tipo 1SC/APC
Wavelength nm 1548...1565

OPTICAL INPUT
GPON

Insertion loss (1310nm & 1490nm) dB <1
Input connector tipo 8 x SC/APC
GPON wavelength nm 1310±20 - 1490±20

OPTICAL OUTPUT

Output optical power (1550nm) dBm 20 ± 0,5
Output connector tipo 8 x SC/APC
Noise figure dB Tip 5 (Pin=0dBm 1550nm). Máx 7.
Return loss dB ≥ 40

POWER SUPPLY UNIT

AC voltage VAC 99-253
Frequency Hz 50-60
Efficiency % 89
Protection Index IP 20
More Information
EAN 8424450182758
Hight 0.600
Length 0.600
Width 0.150
Color Black
RED - System Fibra Óptica
RED - SERIE FO Distribution
Product Brand Televes
Entorno Interior
