Optical Attenuator SC/APC 1310/1550nm 5dB Televes

SKU
TEL236411
Brands: Televes
€26.34 Tax included
Availability: In stock
24/48 Hours

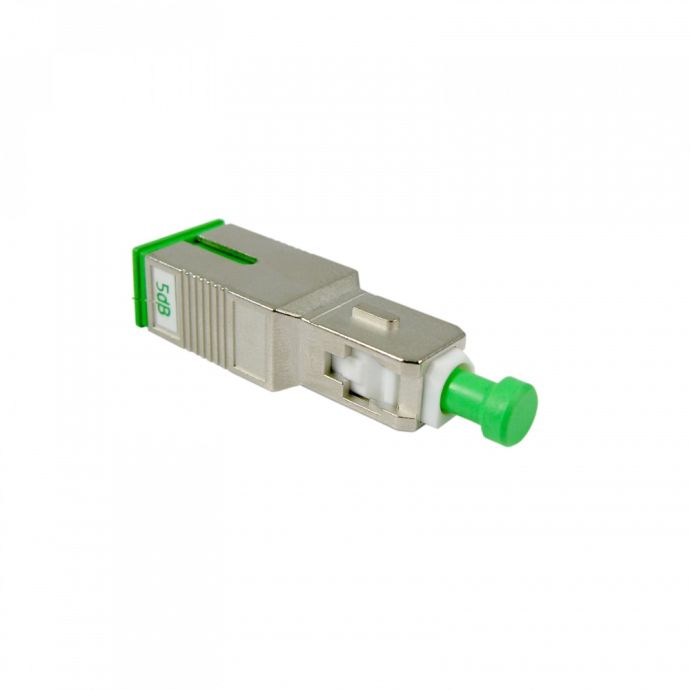

Optical Attenuator SC/APC 1310/1550nm 5dB Televes

5dB optical attenuator at 1310/1550nm with SC/APC Male to Female connectors.

It is a fixed attenuator used to reduce the power of optical signals, this allows adjusting the optical input levels to the dynamic range of optical receivers.

-
+

Technical Specifications of the Optical Attenuator SC/APC 1310/1550nm 5dB Televes





Attenuation dB 5
Optical connectors   SC/APC
Connection type   Male/Female
Selectable wavelengths   1310 nm / 1550 nm
Return losses dB 65
Max. power mW 500
Max. power dBm 27
Attenuation tolerance dB 0.5
Operating temperature °C -40 ... 75
Colour   Metallic
More Information
EAN 8424450190456
Hight 0.080
Length 0.020
Width 0.060
Color Silver
RED - System Fibra Óptica
RED - SERIE FO Distribution
Product Brand Televes
FO Distribution FO Attenuator
Write Your Own Review
You're reviewing:Optical Attenuator SC/APC 1310/1550nm 5dB Televes
Your Rating
File Label Size Download
pdf Ficha Técnica Atenuador Óptico SC/APC 1310/1550nm 5dB Televes 115.7 KB Download
