Optical Distribution Box 48 Fibers OMI-DS of Bitel

SKU
BITOMIDS48FO
Brands: Bitel Group
€30.86 Tax included
Availability: In stock
24/48 Hours

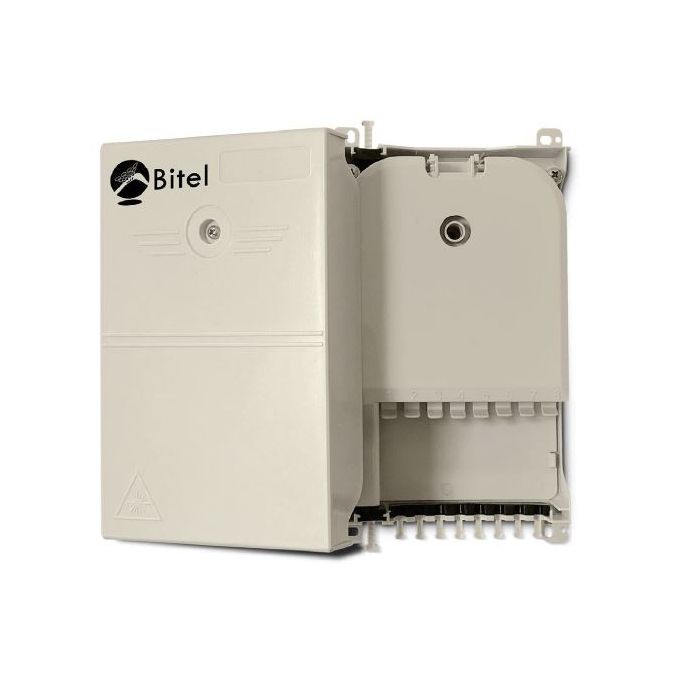

Indoor Optical Distribution Box OMI-DS

This record is used to distribute the fibers indoors. It has a capacity of 48 fibers, for FTTx applications or xLAN networks. This box allows the fibers of a cable coming from the vertical to be divided into individual connections to take the fiber to the desired point. Distribution is done independently.

It allows two types of configuration of the main cable: "through" and "point to point". In the first, the main cable goes from bottom to top and the fibers to be distributed are fused to the corresponding pigtails. Individually secured distribution cables.

Compatible with mechanical splice protectors and heat shrink sleeves on the same splice holder (length: 40, 45 60mm).

-
+

Technical Specifications of the OMI-DS Indoor Optical Distribution Box



Dimensions: 125x226x53mm

Cable port: 2 trunk cable ports + 8 distribution cable ports

Main wire diameter: Up to 8mm

Distribution cable diameter: Up to 3mm

Splice capacity: 48 splices (2 trays)

Adapter Capacity: 8SC Sx or LC Dx

PLC Splitter: 1x4 or 1x8

Protection degree: IP54

Impact Rating: ik054

UV resistant casing

Material: Low smoke halogen free LSZH plastic

More Information
EAN 1000000000597
Hight 0.180
Length 0.080
Width 0.150
System ICT Interior
Serie Plástico
Color White
Product Brand Bitel Group
