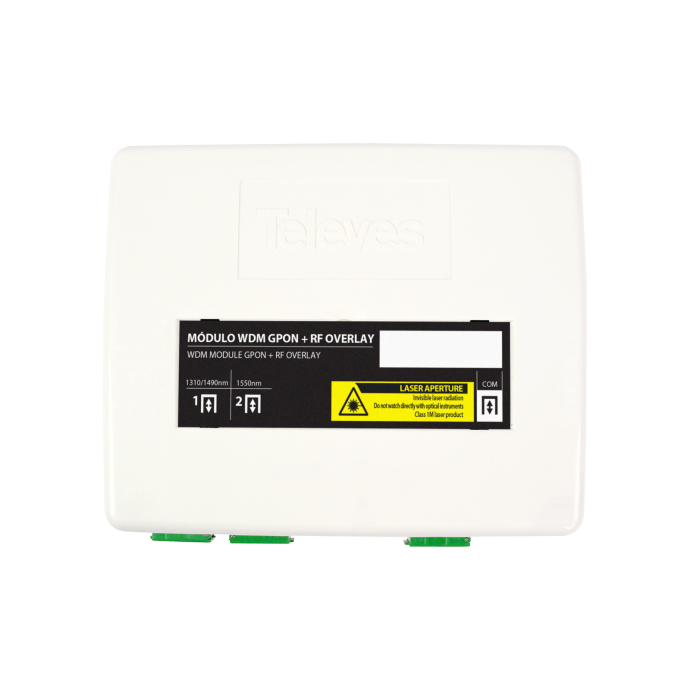

main product photo

Optical Multiplexer Module (WDM) 1310/1490 - 1550nm

SKU
TEL234740
Brands: Televes
€52.57 Tax included
13% Discount for professionals
Televes
Availability: On request
1 to 7 days
Be the first to review this product

Optical Multiplexer Module (WDM) 1310/1490 - 1550nm Televes 234740

Passive device that multiplexes/demultiplexes two SC/APC optical inputs: one of 1310/1490nm (GPON) and the other of 1550nm (RF Overlay). For application in G/EPON networks.

White ABS plastic housing, compact and resistant, for wall or DIN rail installation.

-
+

Optical multiplexer module (WDM) with 2 SC/APC inputs: 1310/1490nm (GPON) and 1550nm (RF Overlay)

What technical specifications does the Televes 234740 Optical Multiplexer Module have?

Wavelength Operating nm 1260...1620
Transmission nm 1540...1565
Reflection nm 1270...1350 & 1475...1505
Fibre type Single-Mode (9/125)
Connector type & fibre color COM SC/APC (Black)
Transm. / Reflec. SC/APC (White)
Insertion loss Transm. / Reflec. dB <0,5
Return loss dB >50
Max. power supported dBm +25
Operating temperature ºC -5...+45

More Information
More Information
EAN 8424450193136
Hight 0.050
Length 0.175
Width 0.220
Color White
Product Brand Televes
Entorno Interior
