Optical Transmitter DTT-Satellite 1310nm SC/APC 3dbm

SKU

TEL238201

Brands: Televes

€353.91 Tax included

Availability: On request

Delivery: 1 to 7 days

Be the first to review this product

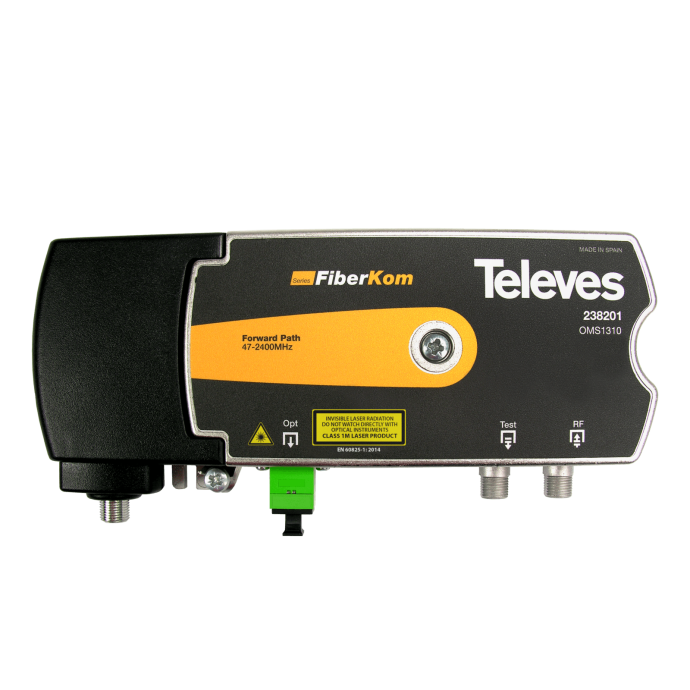

FiberKom Televes 238201 Optical Transmitter

This Televes transmitter generates an optical signal at 1310nm and with 3dBm power from a terrestrial and satellite RF signal (47-2400 MHz).

Simple "Plug & Play" wall-mount installation, with type F input and SC / APC output. SMATV compatible: bandwidth up to 2400 MHz.

Optical level indicator by green LED. Power supply via coaxial connector, with supply voltage up to 35V.

FiberKom Televes SC/APC optical transmitter in 1310nm for DTT and Satellite.

What are the main features of Televes FiberKom 238201 optical transmitter?

SMATV-compatible: up to 2400 MHz input bandwidth
"Plug & Play" installation
FiberKom design: made of Zamak, provides great robustness and shielding. The design also offers a wall assembly for separately installation.
OMI Test Point
Optical level indicator with green LED
Coaxial power supply connector, with a maximum voltage of 35V
SC/APC optical connectors, and F-type connectors for RF

What technical specifications does the Televes FiberKom 238201 optical transmitter have?

RF	Frequency range		MHz	47 - 2400
	Flatness	47-1200 MHz	dB	±0.75
		950-2400 MHz		±2.5
	Input level	47-1200 MHz	dBμV	79
		950-2400 MHz		95
	C/N		dB	>51
	CSO		dB	>60
	CTB		dB	>65
	OMI Test point		dBμV	64
Optical	Optical connector		type	SP / APC
	Laser		type	MQW - DFB
	Wavelength		nm	1310
	Output power		dBm	+3
General	RF connector		type	F-female
	Power supply connector			F-female
	Power supply voltage		V / mA	11-35 / 120-40
	Operating temperature		ºC	-5 ... +45
	Index operation		IP	30

More Information

More Information
EAN	8424450180617
Hight	0.204
Length	0.041
Width	0.115
System SAT	Optical Fiber
MANUFACTURER SERIE SAT	Fiberkom
Color	Black
Product Brand	Televes
