Optical UAP 2 Outputs SC/APC + FO 40m

SKU

PAU2ADA40M

Brands: GTlan

€27.02 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

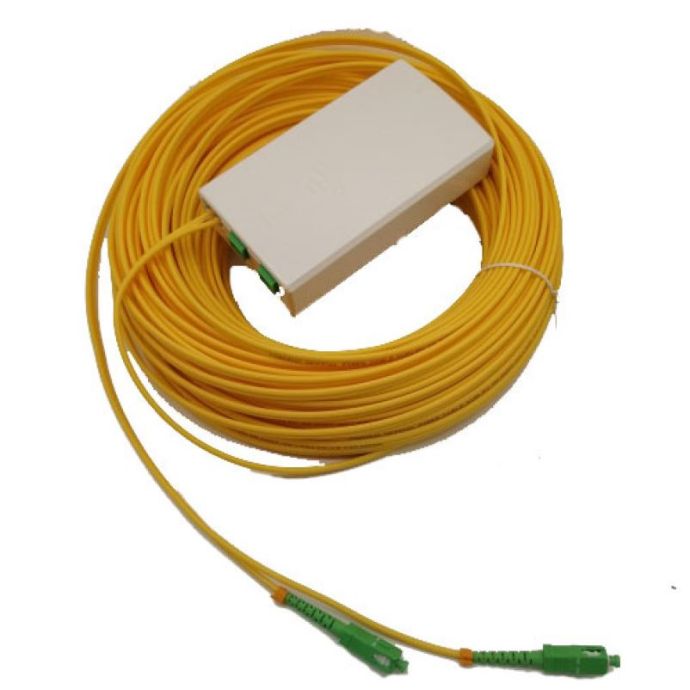

GTLAN Optical UAP 2 outputs SC/APC + 40m Duplex Patch Cord

Optical access point kit of 2 SC/APC ports plus pre-connected 40 meter single-mode 2-fiber cable with LSZH cover for connection to RITI or building connection point.

FO UAP + 40-meter fo cable ideal for FTTH installation in an ICT, speeding up work by saving time in assembling the connectors of each user terminal box. The UAP includes the screws to fix it in the registers.

Contact us if you are looking for a quote for other measures or solutions according to your needs.

UAP of Fiber Optic preconnected 2 SC/APC Outputs with 40 meter patch cords

What technical specifications do GTLAN Optical UAPs have?

Box Specifications:

Material: ABS plastic
Cable entry: Bottom
Fixation: Surface
Connectors: 2x SC / APC + 2 (cascaded)
White color
Measurements: 135 x 75 x 25 mm
Packaging: Unit
Regulations: UL94 V-0, IEC 61754-4, Telcordia GR-409, Telcordia GR-326, IEC 60793, RoHS 2011/65 / EU and CE

Hose Specifications:

FO cable type: Duplex
Cover material: LSZH
Cover color: Yellow
Cable diameter: 3 mm
Adapters: 2x SC / APC
Insertion loss: ≤ 0.2 dB
Return loss: ≥ 60 dB
Fiber type: Singlemode G.657.A2
Working temperature: -40º to 80º C
Tensile strength: 10 N
Min. Bend radius: 35 mm

More Information

More Information
EAN	8421600000006
Hight	0.250
Length	0.100
Width	0.250
System ICT	Optic Fiber
Serie	40m
Fiber type	Singlemode
Entorno	Interior
Color	White
Product Brand	GTlan
