OTDR for Televes Singlemode 1310-1550nm Fiber Optic

Name: OTDR for Televes Singlemode 1310-1550nm Fiber Optic
Brand: Televes
SKU: TEL598001
Price: 2182.54 EUR
Availability: InStock

SKU

TEL598001

Brands: Televes

€2,182.54 Tax included

Availability: On request

Delivery: 1 to 7 days

Be the first to review this product

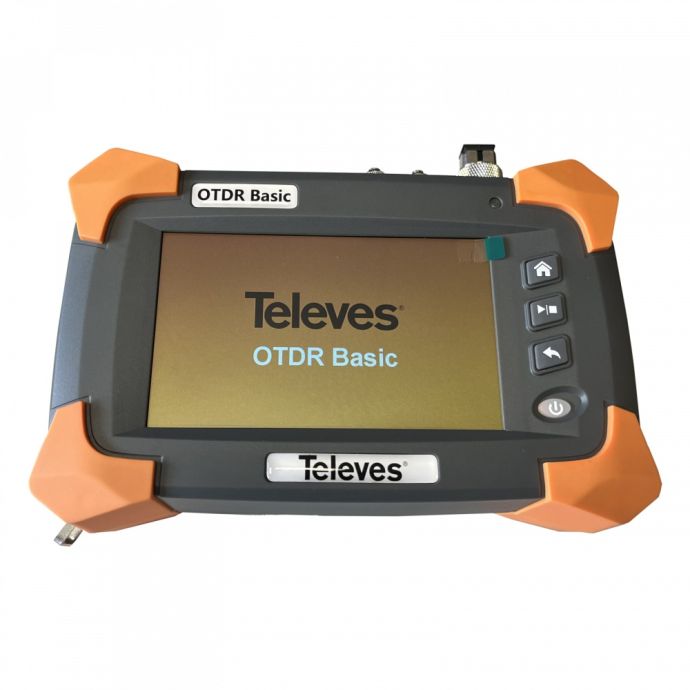

OTDR for the Installation of Single-mode Fiber Optic Links 1310-1550nm Ref. 598001 from Televes

This device is used for the installation and maintenance of fiber optic networks. It is compatible with single-mode fibers of 1310/1550nm wavelengths.

It allows us to locate faults in the network quickly. It has a battery with a range of up to 8 hours of continuous use (and 20 hours on standby). It is a portable OTDR, small in size, very comfortable to transport. It has a 5” touch screen that makes it much easier to use and carry out operations.

Among the functions it performs are: automatic OTDR, expert OTDR mode, link image, optical power meter, stabilized laser source, optical loss test and visual fault locator.

It features short range performance with 1.5m event dead zone and 8m attenuation dead zone.

Details

OTDR Technical Specifications for the Installation of Single-mode Fiber Optic Links 1310-1550nm Ref. 598001 from Televes

Reference: 598001

Logic Ref: OTDRBASIC

EAN13: 8424450283714

Physical data

Net weight 700.00 g

Gross weight 700.00 g

Width 190.00 mm

Height 130.00 mm

Depth 65.00 mm

wavelength	1310/1550nm ± 20nm
Dynamic range (2)	24/22dB
Event dead zone (3)	1.5m
Damping dead zone (3)	8 m
Distance range	0.5, 1, 2, 4, 8, 16, 32, 64, 100 km
Pulse width	3 - 2000 ns
averaging time	5, 15, 30, 60, 120, 180s
Accuracy distance measurement	± (1m + 5×10^-5 × distance + sampling resolution)
Accuracy insertion loss	±0.05dB/dB
Return loss accuracy	±3dB
sampling resolution	0.05 - 8 m
Refractive index (IOR)	1,00000 - 2,00000
Resolution attenuation measurement	0.001dB
Minimum threshold for detecting non-reflective events	0.01dB
Measuring port stretch connector type	SC/UPC

General specifications

display	5-inch color LCD, multi-touch capacitive touchscreen
Power supply	Lithium battery: 3.7 V, 6600 mAh Power supply: 5V DC, 2A
Battery life	8 hours continuous operation, 20 hours standby
Storage capacity	8Gb, ≥ 200,000 records
Data interface	USB Type C
operating temperatur	-10ºC ~ 50ºC
Storage temperature	-40ºC ~ 70ºC
Relative humidity	0 - 95% (non-condensing)
Weight	0.7 kg (including battery)
Dimensions (H×W×D)	190 × 130 × 65mm

Visible Laser Light Source (VFL)

wavelength	650nm ±20nm
Output power	≥ 10mW
MOD	CW/1Hz/2Hz
Measuring port stretch connector type	Universal 2.5mm

Stabilized Laser Light Source (SLS)

wavelength	1310/1550nm ± 20nm (4)
Output power	≥ -5 dBm (adjustable)
MOD	CW/ 270Hz/ 330Hz/ 1KHz/ 2KHz
stability	CW ± 0.5 dB (after 15 min preheating time)
Measuring port stretch connector type	FC/UPC

Optical Power Meter (OPM)

Calibrated wavelength	850, 1300, 1310, 1490, 1550, 1625, 1650 nm
Performance range	-50 - +26dBm
Detector type	InGaAs
Resolution attenuation measurement	0.01dB
Accuracy of attenuation measurement	±5%
Frequency detection	CW/ 270Hz/ 330Hz/ 1KHz/ 2KHz
Measuring port stretch connector type universal	2.5mm

Optical Attenuation Test (OLT)

Stabilized laser light source	Same as SLS module
Optical power meter	Same as OPM module
Detector type	InGaAs
Resolution attenuation measurement	0.01dB
Accuracy of attenuation measurement	±5%
Frequency detection	CW/ 270Hz/ 330Hz/ 1KHz/ 2KHz
Measuring port stretch connector type universal	2.5mm

Technical data

longitud de onda	1310/1550 nm ± 20 nm
Rango dinámico (2)	24/22dB
Zona muerta del evento (3)	1,5 metros
Zona muerta de amortiguación (3)	8 metros
Rango de distancia	0,5, 1, 2, 4, 8, 16, 32, 64, 100 kilómetros
Pulsbreita	3 - 2000 ns
tiempo promedio	5, 15, 30, 60, 120, 180 segundos
Medición de distancia de precisión	± (1m + 5×10^-5 × distancia + resolución de muestreo)
Pérdida de inserción de precisión	± 0,05dB/dB
Precisión de pérdida de retorno	± 3dB
resolución de muestreo	0,05 - 8 metros
Índice de refracción (IOR)	1.00000 - 2.00000
Medición de atenuación de resolución	0,001dB
Umbral mínimo para detectar eventos no reflectantes	0,01dB
Tipo de conector elástico del puerto de medición	SC/UPC
