Ubiquiti Networks ™ has manufactured a low cost and efficient bandwidth CPE with the original NanoStation ™.
The NanoStation LocoM2 take the same concept for the future with sleek and elegant formats, along with the integrated technology airMAX ™ (MMA TDMA Protocol).
The low cost, high performance and small format of the NanoStation LocoM2 make them extremely versatile and economical to implement.
Together with the installation of the CPE LOCOM2 it is recommended to install an ETH-SP-G2 anti-charge protector
The LOCOM2 access point of Ubiquiti is a CPE that works at 2.4GHz and has a power of 8DBi.
What technical characteristics does the LOCOM2 access point have?

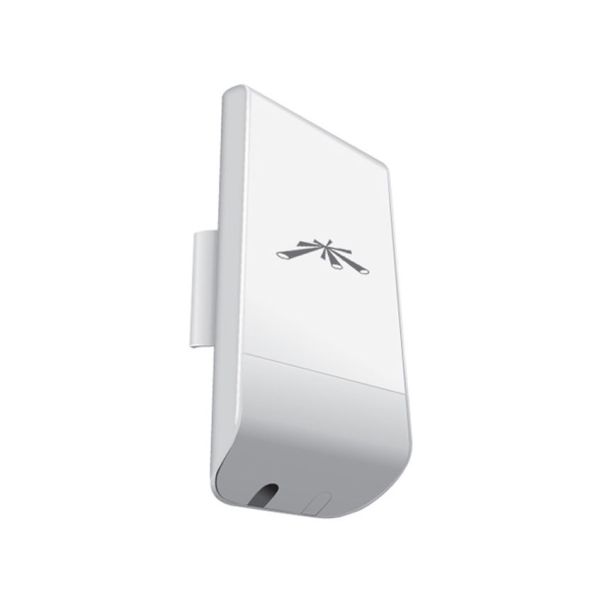

NanoStation Loco M2 is a compact outdoor device, it includes a dual polarity MIMO antenna for the 2.4 GHz band.
The actual transfer speed of the equipment is up to 150 Mbps.
Thanks to TDMA technology, Time Division Multiplexing allows you to connect more than 300 clients to the team.
This model has a low latency. Compared to the Nanostation M predecessors, the Nano Loco M2 has a processor with a higher clock frequency of 400 MHz and more memory.
Very simple and transparent administration website
Examples of possible configurations:
AP, client or WDS mode
Traffic Shaping
QoS
Transparent bridge or routing between WAN and LAN, with NAT or without NAT
Specific LED to indicate the strength of the signal
Output power 23 dBm
The equipment supports IPv6 in bridge mode and WDS.
The equipment includes the 24V PoE injector necessary for its power supply.
Another advantage is that it supports PoE on the secondary ethernet port, which allows it to power another device. This feature can be disabled through software.
Important information about compatibility:
This device uses the new AirOS V firmware version. For this reason, the device may not be fully compatible with other radio devices.
The AirOS system is continuously improving, so it is recommended to always update the firmware to the latest version.
Specifications Ubiquiti Loco M2
Ports and Interfaces
Ethernet LAN (RJ-45) number of ports: 1
Weight and measurements
Width: 80 mm
Depth: 31 mm
Height: 163 mm
Weight: 180 g
Energy control
Energy consumption: 5.5 W
Input voltage: 24
Input current: 0.5
Power over Ethernet (PoE): Yes
Environmental conditions
Relative humidity range for operation: 5 - 95%
Operating temperature range: -30 - 75 ° C
Antenna
Antenna gain (max): 8 dBi
Design
Internal: No
Color of product: White
LED indicators: Yes
Housing material: Plastic
Performance
Transfer rate (max): 150 Mbit / s
2.4 GHz: Yes
Network standards: IEEE 802.3, IEEE 802.3u
Ethernet LAN, data transfer speed: 10,100 Mbit / s
