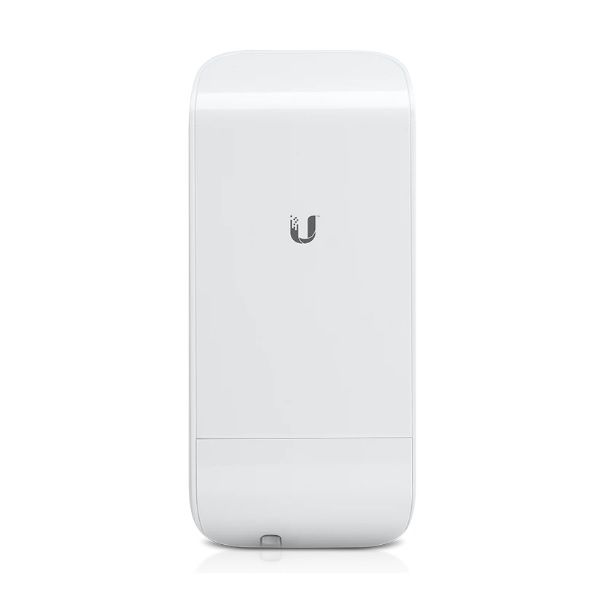

Outdoor Access Point Ubiquiti Locom5 CPE 12dB 200mW

SKU
UBILOCOM5
Brands: Ubiquiti
Availability: Out of stock
Consult

Outdoor Access Point Ubiquiti Locom5 CPE 12dB 200Mw

Deploy your network in the most efficient way and with high performance thanks to this access point. With 5GHz airMAX technology, valid for both indoors and outdoors.

This device is capable of serving as a bridge to expand the radius of action, providing you with low-cost connectivity and high performance.

Its functions at the operational level are very powerful, allowing PtMP airMAX access point mode in mixed mode, long-range point-to-point (PtP) link mode, automatic or manually selectable heat selection, automatic or manual power control and WPA2 security. . In addition, its application is free. Includes passive PoE.

It includes a spectrum analyzer in real time, allowing you to identify sources of noise in order to minimize them. It also includes the airControl tool, capable of managing the network efficiently and easily, with a very practical visual environment.

Box contents:

*Ubiquiti NanoStation locoM5 airMAX Access Point

*Flanges

*PoE (24V, 0.5A) with mounting bracket

*Power cord

Technical Characteristics of the Outdoor Access Point Ubiquiti Locom5 CPE 12dB 200mW


Technical specifications

*Interface:

Network interface: (1) 10/100 Ethernet ports
Processor: Atheros MIPS 24Kc, 400MHz
Memory: 64MB DDR2, 8MB Flash
Frequency: 5GHz
Cross pole isolation: 20 dB minimum
Beamwidth: 45° (H-pol) / 45° (V-pol) / 45° (Elevation)


*wireless connectivity:


Wi-Fi: airMAX
Frequency: 5GHz
Operating frequency: 5170-5875MHz
Gain: 13dBi
Signal amplitude: 45° (H-pol) / 45° (V-pol) / 45° (Elevation)


*Consumption:


Power supply (PoE): 24V, 0.5A (included)
Maximum power consumption: 5.5W
PoE Power Method: Passive (Pairs 4, 5+; 7, 8 Return)
Operating frequency: 5170-5875MHz


*Materials:


Exterior: Outdoor UV stabilized plastic
Pole mounting: plastic ties (kit included)


*Dimensions:


161 x 31 x 80mm


*Weight:


180g

More Information
EAN 810354022340
Hight 0.220
Length 0.080
Width 0.090
RED - System Airmax
RED - SERIE Punto a Punto
Color White
Network Equipment Radio link
Data Speed Fast Ethernet (10/100Mbps)
PoE Yes
Product Brand Ubiquiti
Write Your Own Review
You're reviewing:Outdoor Access Point Ubiquiti Locom5 CPE 12dB 200mW
Your Rating
File Label Size Download
pdf Ficha Técnica Punto de Acceso Ubiquiti LOCOM5 CPE 281.5 KB Download
