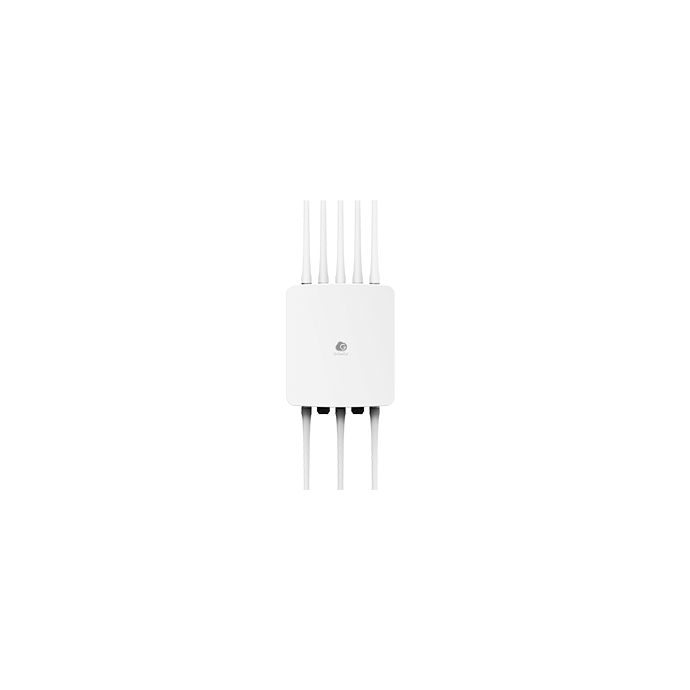

Technical Specifications of the Engenius ECW270 Dual Band 4x4 WiFi-6 Access Point
Standards
IEEE 802.11ax at 2.4GHz
IEEE 802.11ax at 5GHz
Backwards compatible with 802.11a/b/g/n/ac
Antenna
4 x 2.4 GHz: 5 dBi (omnidirectional integrated)
4 x 5 GHz: 7 dBi (omnidirectional integrated)
Physical interface
1 10/100/1000 Ethernet port
1 Ethernet port 10/100/1000/2500 (PoE++)
LED indicators
1 x power
1xLAN1
1xLAN2
1 x 2.4GHz
1x5GHz
Power supply
Power Over Ethernet: 802.3at/bt
Input Compliant with IEEE 802.11e Source Active Ethernet (PoE)
Maximum power consumption
46W
Operating frequency
Dual concurrent radio 2.4 GHz and 5 GHz
Operation modes
Managed mode: AP, Mesh AP, Mesh
Radio frequency
2.4GHz: 2400MHz~2483MHz
5GHz: 5150MHz~5250MHz, 5250MHz~5350MHz, 5470MHz~5725MHz, 5725MHz~5875MHz
Potency of transmission
Up to 24 dBm in 2.4 GHz
Up to 24 dBm at 5 GHz
(Max power is limited by regulatory domain)
Radio networks/Space transmission
4×4:4
Supported Data Rates (Mbps):
802.11ax:
2.4 GHz: 9 to 1148 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 4)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 (MCS0 to MCS31)
802.11ac: 6.5 to 1733 (MCS0 to MCS9, NSS = 1 to 4)
Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct Sequence Spread Spectrum (DSSS)
Channels
802.11ax supports High Efficiency (HE) performance—HE 20/40/80 MHz
802.11ac supports Very High Throughput (VHT)—VHT 20/40/80 MHz
802.11n supports High Throughput (HT) performance—HT 20/40 MHz
802.11n Supports high performance on the 2.4 GHz radio: HT40 MHz (256-QAM) packet aggregation
802.11n/ac/ax: A-MPDU, A-SPDU
Supported modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
Maximum concurrent users
511 by radio
Multiple BSSIDs
8 SSIDs for 2.4 GHz and 5 GHz radios
SNMP
v1, v2c, v3
MIB
I/II, private MIB
Fast roaming
802.11r/k
Wireless security
WPA2-PSK
WPA2-Enterprise
WPA3-PSK
WPA3-Enterprise
Hide SSID
MAC address filtering, up to 32 MACs per SSID
Wireless STA (Client) Connected List
https
ssh tunnel
client isolation
Temperature range
Operating: – -4º~149ºF/-20ºC~65ºC
Storage: -40 Fº~176 ºF/-40 ºC~80 ºC
Humidity (non-condensing)
Running: 90% or less
Storage: 90% or less
IP Classification
IP68
ESD protection
Contact: 4KV
Air: 8KV
ECW270 device
Weight: 1870g
Width: 218mm
Length: 285mm
Height: 53mm
