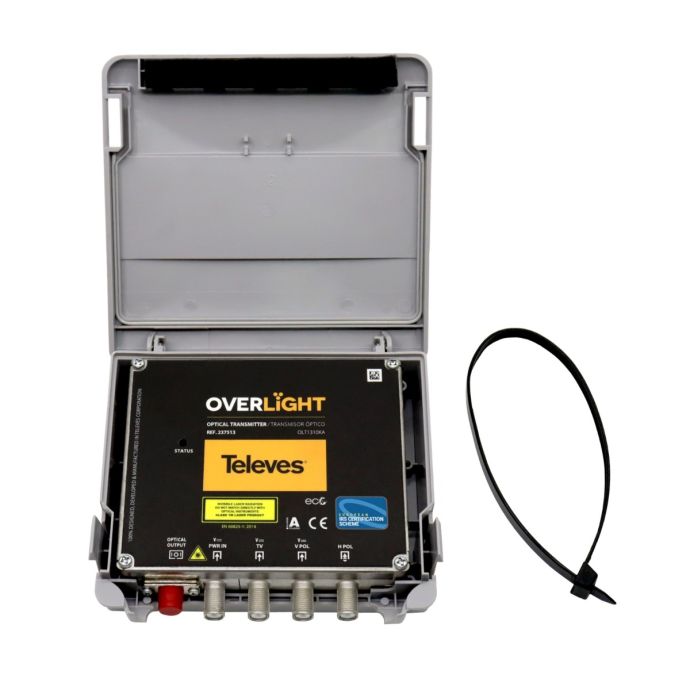

Outdoor Optical Transmitter Overlight FP/APC 1310nm/10dbm Televes

SKU
TEL237513
Brands: Televes
€556.61 Tax included
Free shipping
(Iberian Peninsula)
Televes
Availability: On request
1 to 7 days

Outdoor Overligth Series Optical Transmitter 1310nm 10dBm CWDM DAB/UHF/SAT

The Overlight series is characterized by being a series of satellite and terrestrial distribution over fiber optics. Therefore, you will be able to group all the services in a single optical fiber, achieving installations with fewer antennas and devices in the installation, making the installer's job much easier.

The transmitter will receive the signal from the LNB, both satellite and terrestrial, and will send it through a single fiber with an FC/APC connector, being able to distribute it to up to 64 users.

Its optimized electronic design gives this transmitter an output optical power of 10dbmW with a wavelength of 1310nm.

It allows amplification, it is capable of preserving the quality of the signal from the beginning to the end, thanks to its low losses and its optimized electronic behavior.

Technical Specifications of the Outdoor Overlight Series 1310nm 10dBm CWDM DAB/UHF/SAT Optical Transmitter



Inputs/Bands
TERR V H
Frequency range MHz
47 ... 694 290 ... 2340 290 ... 2340
Input level dBμV
83 ... 95 70 ... 85 70 ... 85
Powering per inputs Vdc
11.7 ... 17.7 11.7 ... 17.7 --
Max. current mA
500 500 --
Max. current pass total inputs mA 720
Impedance Ω 75
Laser   MQW-DFB uncooled
Wavelength nm 1310
Optical output power dBm 10
RF connectors   "F" female
Optical connectors   FC/APC
Powering Vdc 12 ... 18
Max. power consumption W 5.6
Current consumption mA < 430
Operating temperature °C -5 ... 45
PSU input voltage Vac 100 ... 240
Max PSU current input mA 600
PSU output voltage Vdc 12
Max PSU output current A 1.5
More Information
EAN8424450271865
Hight0.180
Length0.090
Width0.160
System SATOptical Fiber
SERIE SATOverlight
ColorBlack
EntornoExterior
LTE compatibleNo
Product BrandTeleves
