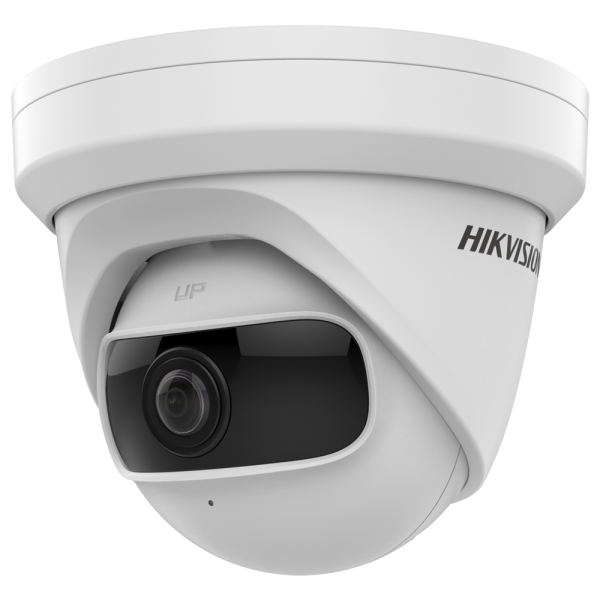

Technical Specifications of the PRO 4Mpx IR 10m Panoramic IP Camera
Camera
- Image Sensor 1/2.7" Progressive Scan CMOS
Minimum Illumination
Colour: 0.028 Lux @ (F2.0, AGC ON)
B&W: 0.0028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range 120dB
Day And NightIR Cut Filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
LensFixed lens, 1.68 mm
FOV68mm, Horizontal FOV: 180°, Vertical FOV: 101°, Diagonal FOV: 180°
opening0
Lens MountM12
Illuminator
IR range Up to 10 m
Wavelength850nm
Video
Resolution2688 × 1520
Main Stream
50Hz: 25fps (2688×1520, 2304×1296, 1920×1080, 1280×720)
60Hz: 24fps (2688 × 1520), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Sub Stream
Video Compression
Mainstream: H.265+/H.264+/H.265/H.264
Sub stream: H.265/H.264/MJPEG
Video Bitrate32 Kbps to 16 Mbps
Type H.264Baseline Profile/Main Profile/High Profile
Type H.265 Main Profile
Scalable Video Coding (SVC)264 and H.265 encoding support
Region Of Interest (ROI)1 fixed region for main stream, sub-stream and third stream
Grid
Simultaneous Live ViewUp to 6 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL /TLS, WebSocket, WebSockets
User/OperatorUp to 32 users, 3 levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1 .2
Network StoragemicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
Client iVMS-4200, Hik-Connect, Hik-Central
Web browserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
Day/Night Switch Day/Night/Auto/Schedule
Image EnhancementBLC, HLC, 3D DNR
Picture SettingsSaturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Interface
On Board Storage Built-in micro SD slot, up to 256 GB
Hardware ResetReset via reset button on camera body, web browser and client software
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
Event
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event Line crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection
General
Link Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian , Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
Storage Conditions-10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing)
Starting And Operating Conditions-10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af, type 1, class 3)
Power And Current Consumption12 VDC, 0.48 A, max. 5.8W; PoE (802.3af, 36V to 57V), 0.19A to 0.12A, max. 6.8W
Chamber Dimension
Camera: Φ 127.3 × 104.1mm (Φ 5" × 4.1\")
With package: 150 × 150 × 141mm (5.9 × 5.9\" × 5.6\")
Camera Weight
Camera: Approx. 520g (1.1lb.)
With package: Approx. 700g (1.5 lbs.)
