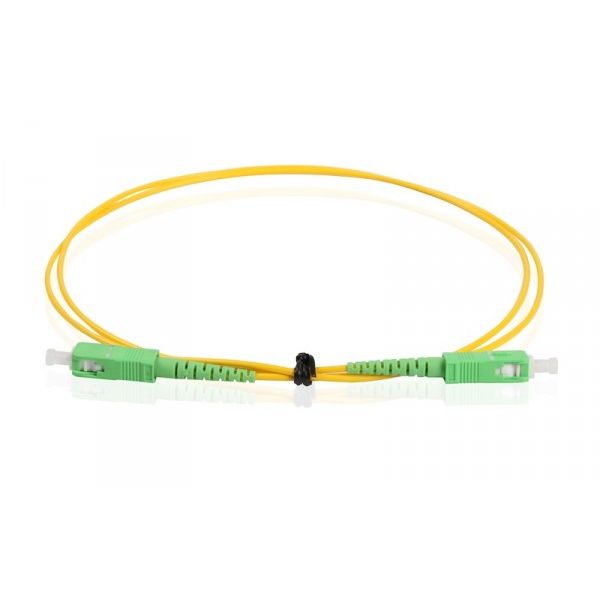

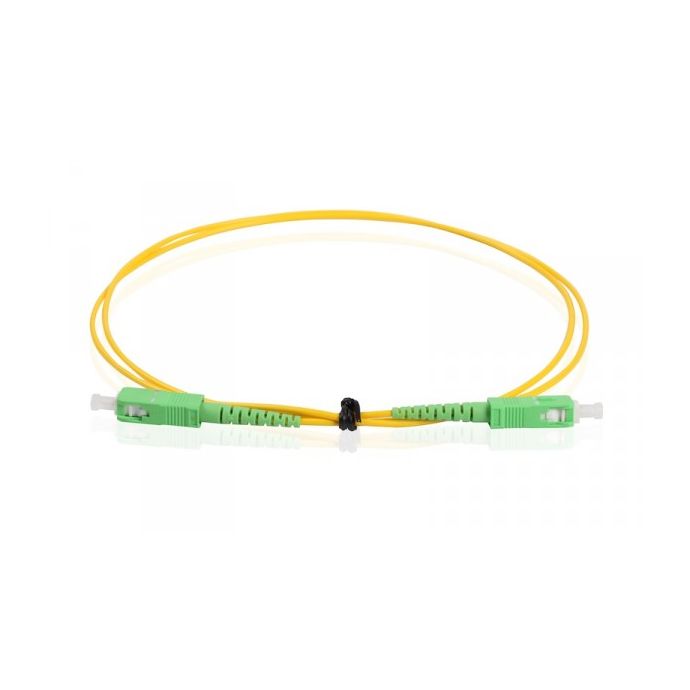

Tecatel fiber optic patch cord FO-070073 allows us to transmit the optical signal from one device to another separated from each other by a distance of 3 meters.
This fiber optic hose can be used both inside and outside, has an outside diameter of 3 mm and can be used in installations with known lengths.
Tecatel fiber optic hose FO-070073 allows the connection of two devices separated from each other by a distance of 3 meters.
What technical features does the fiber optic patch cord FO-070073 have?
Single-mode fiber optic patch cord G657-A2, 9/125 μm 3 mm
Connectorized SC / APC to SC / APC
LAN and MAN
CATV system
Digital communication system
Compliant with ICT2
Insertion loss: <0.3 dB
Return loss:> 60 dB
Cover LSZH
What connectors does this patch cord use?
It uses an SC connector, which is a low loss optical fiber connector, widely used in SM installations and CATV and Network applications, which was designed for use in high vibration environments, and an APC (angular) polishing favors the coupling between two fibers on a surface inclined to 8 degrees. This causes the light transition reflections not to return to the fiber core, which increases the return loss to values greater than 60 dB.
